4MMOF Series
Balancing Valve
Size Range : 3/4″ To 2 (Flanged End)
Size Range : 2″ To 20″ (Screwed End)
Description
The 4MMOF Series Balancing Valve is a high-performance solution for the HVAC and Plumbing industry, designed to ensure precise flow regulation and perfect hydraulic balance. Engineered for energy efficiency, durability, and easy maintenance, it enhances system performance and reliability in chilled water, heating, and plumbing networks.
Advantages :
- Consistent Flow Regulation: Ensures precise system balancing for stable and efficient fluid control.
- Reduced Energy Losses: Optimized design minimizes pressure drop, improving overall energy efficiency.
- Long-Term Durability: Manufactured from high-grade materials for reliable, corrosion resistant performance.
- Hassle-Free Installation: Compact flanged design allows easy installation and low-maintenance operation.
- Wide Range of Applications: Ideal for HVAC systems, chilled and hot water lines, cooling towers, and process industries where accurate flow control is essential.
| Temperature | Pressure | Ends | |
| Temperature | Upto 85°C |
| Presure | Upto 16 kg/cm² |
| Ends | Flanged / Screwed |
Technical Specification

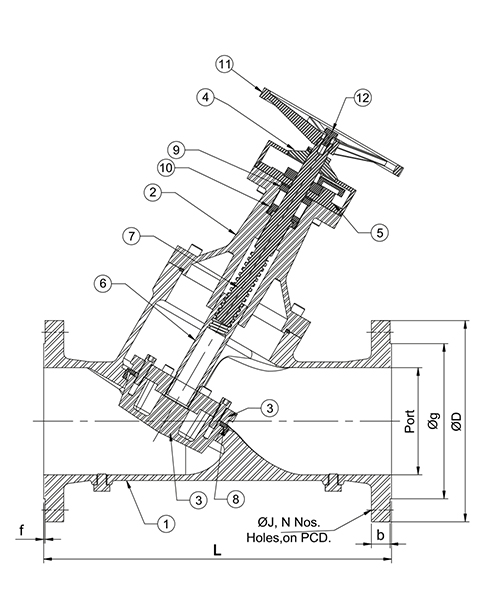

Flanged
| No. | Description | Material |
|---|---|---|
| 1 | Body | WCB / CF8 / CF8M / Gun Metal |
| 2 | Bonnet | WCB / CF8 / CF8M / Gun Metal |
| 3 | Plug Part – 1 & Part – 2 | WCB / CF8 / CF8M / Gun Metal |
| 4 | Calibration Cart | Brass / S.S 304 |
| 5 | Plate | WCB / CF8 / CF8M |
| 6 | Plug Shaft | Brass / S.S 304 |
| 7 | Spindle | S.S. 304 / S.S. 410 |
| 8 | Plug Seal | PTFE |
| 9 | Stem Seal | PTFE |
| 10 | Stem Nut | Brass / S.S 304 |
| 11 | Handwheel | WCB |
| 12 | Handwheel Bolt + Washer | S.S. 304 |
| Size | L | ØD | B | f | Øg | ØJ | N | PCD |
|---|---|---|---|---|---|---|---|---|
| 50 | 230 | 150 | 143 | 2 | 92.1 | 19.05 | 04 | 120.7 |
| 65 | 290.5 | 180 | 159 | 2 | 104.8 | 19.05 | 04 | 139.7 |
| 80 | 310 | 190 | 175 | 2 | 127 | 19.05 | 04 | 152.4 |
| 100 | 350 | 230 | 223 | 2 | 157.2 | 19.05 | 08 | 190.5 |
| 125 | 400 | 255 | 223 | 2 | 185.7 | 22.2 | 08 | 215.9 |
| 150 | 480 | 280 | 239 | 2 | 215.9 | 22.2 | 08 | 241.3 |
| 200 | 495 | 345 | 270 | 2 | 269.9 | 22.2 | 08 | 298.5 |
| 250 | 619 | 405 | 286 | 2 | 323.8 | 25.4 | 12 | 362 |
| 300 | 703 | 485 | 302 | 2 | 381 | 25.4 | 12 | 431.8 |
| 350 | 790 | 535 | 334 | 2 | 412.8 | 28.6 | 12 | 476.3 |
| 400 | 792 | 595 | 351 | 2 | 469.9 | 28.6 | 16 | 539.8 |
| 450 | 1200 | 635 | 381 | 2 | 533.4 | 31.75 | 16 | 577.9 |
| 500 | 1250 | 700 | 413 | 2 | 584.2 | 31.75 | 20 | 635 |

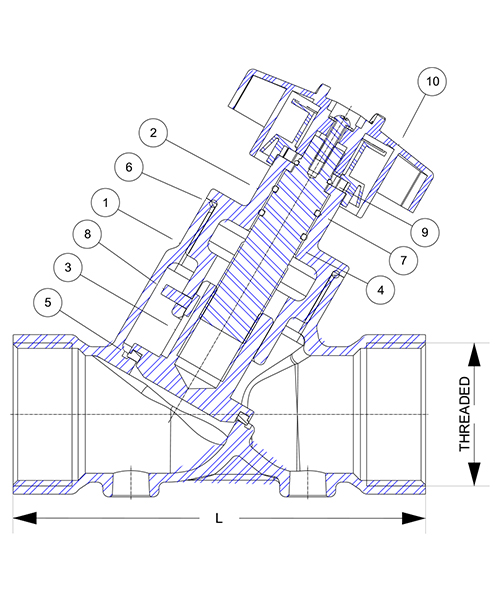

| No. | Description | Material |
|---|---|---|
| 1 | Body | CAST IRON |
| 2 | Bonnet | CAST IRON |
| 3 | Plug | BRASS / S.S 304 |
| 4 | Shaft | BRASS / S.S 304 |
| 5 | Plug Seat | PTFE |
| 6 | Bonnet O Ring | NBR |
| 7 | Shaft O Ring | NBR |
| 8 | Bonnet pin | BRASS / S.S 304 |
| 9 | Shaft Stopper Ring | S.S |
| 10 | Hand Wheel | PLASTIC |
| Size | L | BSP |
|---|---|---|
| 15 | 85 | 1/2″ |
| 20 | 85 | 3/4″ |
| 25 | 110 | 1″ |
| 32 | 125 | 1 1/4″ |
| 40 | 140 | 1 1/2″ |
| 50 | 155 | 2″ |
