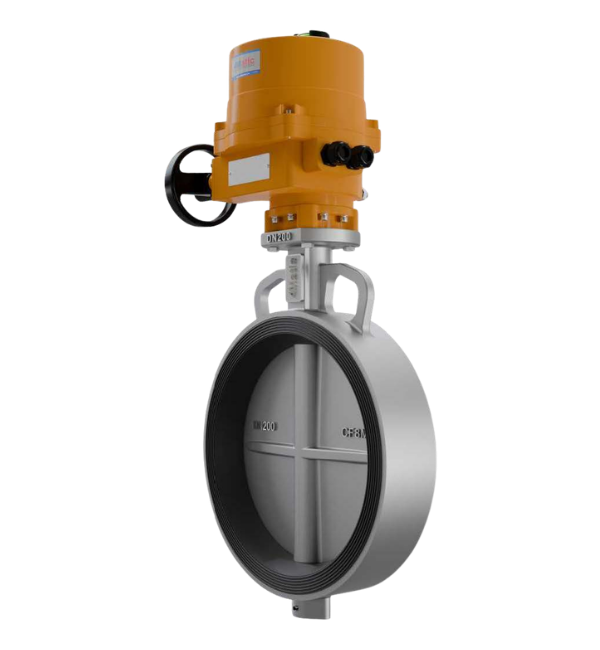

4MMBF Series
Motorized Butterfly Valve
Size Range : 1.1/2″ To 72″
Description
The 4MMBF Series Motorized Butterfly Valve is an advanced electric actuated valve designed to provide accurate flow control, reliable shut-off and automation in pipeline systems. It is specially engineered for modern industrial, commercial and plumbing applications where efficiency and automation are essential.
Its compact wafer-type design ensures easy installation, while the precision-engineered disc and seat deliver leak-tight sealing, low torque operation and long service life.
Features:
- Electric Actuated Operation : Enables remote and automated valve control
- Precise Flow Regulation : Suitable for both on/off and throttling applications
- Compact Wafer Design : Space-saving and easy installation between flanges
- Leak-Tight Sealing : Ensures reliable shut-off performance
- Low Torque Operation : Smooth functioning with minimal power consumption
- Corrosion-Resistant Construction : Ideal for harsh environments
- Long Service Life : Durable design with minimal maintenance requirements
- Multiple Voltage Options : Compatible with various electrical systems

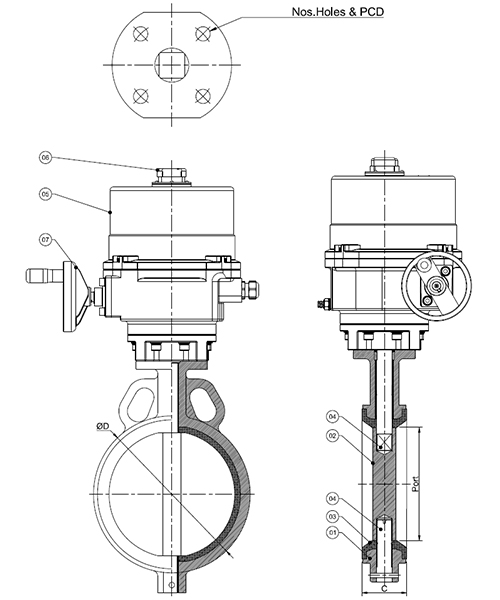

Technical Specification
| No. | Description | Material |
| 1 | Body | CI / DI / WCB / CF8 / CF8M / |
| ALLOY STEEL / DUPLEX / GI | ||
| 2 | Disc | ASTM A 351 Gr CF8 |
| 3 | Moulded Seat | NBR / EPDM |
| 4 | Shaft | AISI 410 |
| 5 | MOD Pro Electrical Actuator | Standard |
| 6 | Position Indicator | Standard |
| 7 | Manual Override | Wheel Type |
| Size | Port | C | ØD | N | PCD |
|---|---|---|---|---|---|
| 40 | 40 | 34 | 82 | 04 | 50 |
| 50 | 50 | 44 | 96.5 | 04 | 50 |
| 65 | 65 | 46 | 109 | 04 | 50 |
| 80 | 80 | 46 | 126.5 | 04 | 50 |
| 100 | 100 | 52 | 150 | 04 | 50 |
| 125 | 125 | 56 | 183 | 04 | 50 |
| 150 | 150 | 60 | 205 | 04 | 70 |
| 200 | 200 | 64 | 259 | 04 | 70 |
| 250 | 241 | 68 | 321 | 04 | 102 |
| 300 | 286 | 78 | 370 | 04 | 102 |
| 350 | 333 | 78 | 405 | 04 | 102 |
| 400 | 382 | 102 | 467 | 04 | 125 |
| 450 | 433 | 114 | 520 | 04 | 140 |
| 500 | 476 | 127 | 568 | 04 | 140 |
| 600 | 590 | 154 | 675 | 04 | 165 |
Higher size on request.
