4MDIL Series
Single Piece Ball Valve
Size Range : 1/2″ To 3″
(S.S)
1/2″ To 2″ (Brass)
1/2″ To 2″ (Brass)
Description
The 4MDIL Series Single Piece Ball Valve is a compact and reliable flow control solution designed for effective shut-off in a wide range of industrial and commercial applications. Built with a single-piece body construction this valve offers good strength, leak-proof operation and long service life.
Its precision-machined ball and seats ensure smooth operation, low torque, and proper sealing, making it suitable for handling water, oil, gas and other non-corrosive fluids. The threaded end connection allows easy installation and maintenance while its sturdy design ensures consistent performance under normal working conditions.
Technical Specification
| Temperature / Working Pressure | |
| Temperature | Upto 180°C / 220°C 1/2″ To 3″ (S.S) 1/2″ To 2″ (Brass |
| Working Pressure | Up to 10 kg/cm² |

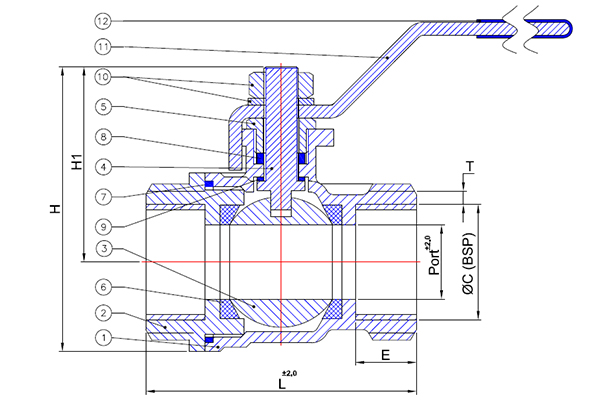

| No. | Description | Material |
|---|---|---|
| 1 | Body | CF8 / CF8M / Brass |
| 2 | Connectors | CF8 / CF8M / Brass |
| 3 | Ball | CF8 / CF8M / Brass |
| 4 | Stem | S.S 304 / Brass |
| 5 | Gland | S.S 304 |
| 6 | Ball Seal | PTFE |
| 7 | Body Seals | PTFE |
| 8 | Gland Packing | PTFE |
| 9 | Stem Packing | PTFE |
| 10 | Stem Nut & Washer | S.S 304 |
| 11 | Handle | S.S |
| 12 | Sleeve | PVC |
| Size | Port | L | ØC | E | H1 | H | T |
|---|---|---|---|---|---|---|---|
| 15 | 15 | 50.5 | 15 | 9 | 39.5 | 56 | 1.15 |
| 20 | 20 | 56.5 | 20 | 12.5 | 45 | 64 | 0.95 |
| 25 | 25 | 69 | 25 | 14.5 | 47.5 | 71 | 0.9 |
| 32 | 31 | 75.5 | 32 | 14.5 | 56.5 | 84 | 0.9 |
| 40 | 35 | 82 | 40 | 14.5 | 64 | 97 | 1.1 |
| 50 | 45 | 94 | 50 | 14.5 | 70.5 | 110 | 0.7 |
| 65 | 64 | 139.5 | 65 | 27 | 108 | 159 | 2.45 |
| 80 | 78.5 | 165 | 80 | 27 | 128 | 195.5 | 2.85 |
