4MNBI Series
Steam Trap
Size Range : 15, 20, 25
Description
Features :
- The 4MNBI Series Steam Trap automatically removes accumulated condensate and non-condensable gases from steam lines.
- Intelligent automatic operation—opening for condensate discharge and tightly closing for live steam to minimize energy loss.
- Installed at low points in steam pipelines or near steam-using equipment for efficient condensate collection.
- Effectively prevents water hammer, corrosion, and unwanted pressure drops within the system.
- An essential component in 4Matic steam systems, the steam trap safely discharges condensate removed by the steam separator, ensuring reliable and efficient operation.
Technical Specification

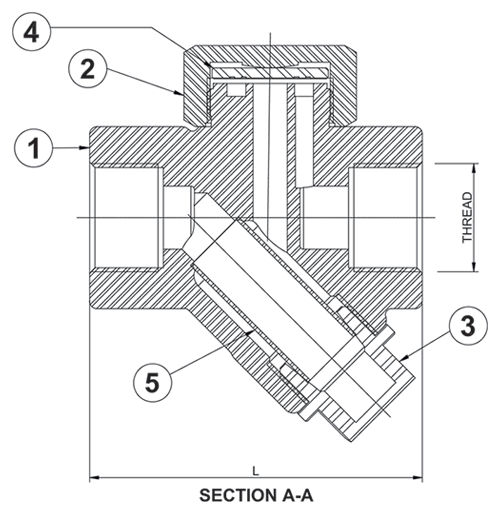

| No. | Description | Material |
|---|---|---|
| 1 | Body | CF8 / CF8M |
| 2 | Top Plug | CF8 / CF8M |
| 3 | Bottom Plug | CF8 / CF8M |
| 4 | Washer | S.S / EN 31 |
| 5 | Strainer | S.S |
| Size | L | BSP / NPT |
|---|---|---|
| 15 | 77.5 | 15 |
| 20 | 77.5 | 20 |
| 25 | 92.4 | 25 |
| Tolerance ±3MM | ||
