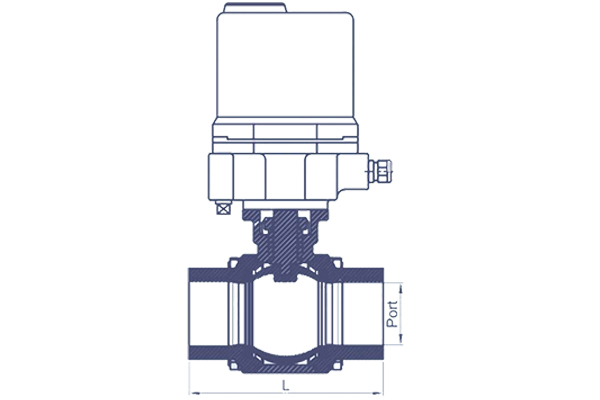

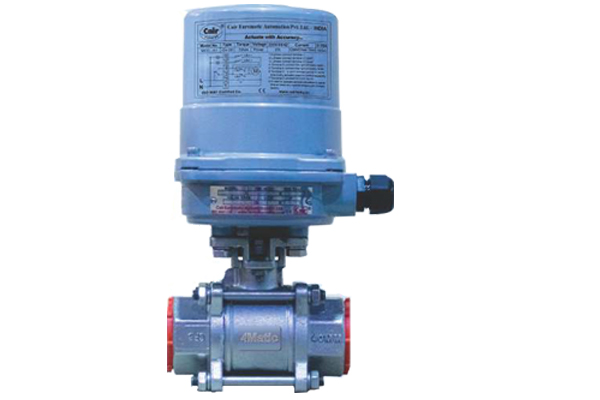

Motorized 2 Way Ball Valve Screwed End
| Model | 4MBV-SD/4MBV-FD |
| Size | 1/2” to 2” |
| MOC | WCB/CF8/CF8M |
| Leckage | PTFE |
| Pressure | 150# |
| Temp. | Upto 450C (Depending upon MOC) |
| End | Screwed Ends |
| Size | Port | L |
| Tolerance | ±1mm | ±3mm |
| (1/2”)15mm | 13 | 64 |
| (3/4”)20mm | 17 | 70 |
| (1”)25mm | 23 | 64 |
| (1.1/4”)32mm | 30 | 70 |
| (1.1/2”)40mm | 36 | 64 |
| (2”)50mm | 47 | 70 |

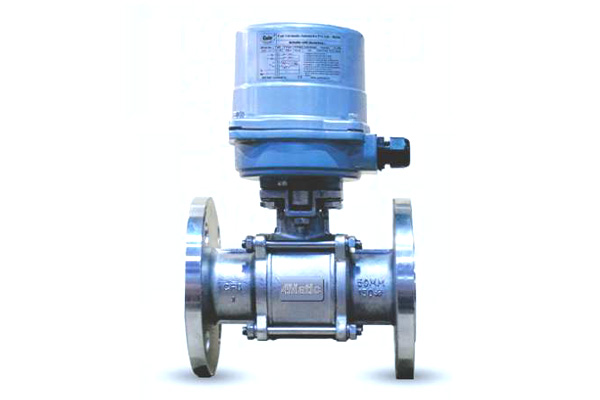

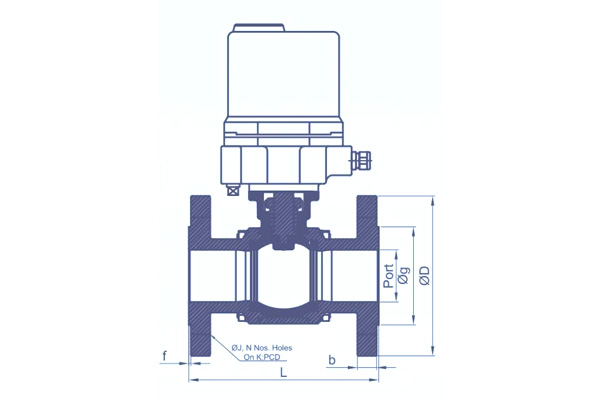

Motorized 2 Way Ball Valve Flanged End
| Model | 4MBV-SD/4MBV-FD |
| Size | 1/2” to 2” |
| MOC | WCB/CF8/CF8M |
| Leckage | PTFE |
| Pressure | 150# |
| Temp. | Upto 180c (Depending upon MOC) |
| End | Flanged End |
| DN | Port | L | ØD | b | Øg | f | Øj | N | PCD |
| Tolerance | ±1mm | ±3mm | ±2mm -1mm |
±3mm | ±1mm | ±0.5 mm | ±1.5 mm | ||
| (1/2”)15mm | 13 | 64 | 90 | 8 | 34.9 | 2 | 15.9 | 4 | 60.3 |
| (3/4”)20mm | 17 | 70 | 100 | 8.9 | 42.9 | 2 | 15.9 | 4 | 69.9 |
| (1”)25mm | 23 | 88 | 110 | 9.6 | 50.8 | 2 | 15.9 | 4 | 79.4 |
| (1.1/4”)32mm | 30 | 105 | 115 | 11.2 | 63.5 | 2 | 15.9 | 4 | 88.9 |
| (1.1/2”)40mm | 36 | 114 | 125 | 12.7 | 73 | 2 | 15.9 | 4 | 98.4 |
| (2”)50mm | 47 | 130 | 150 | 14.3 | 92.1 | 2 | 19.05 | 4 | 120.7 |

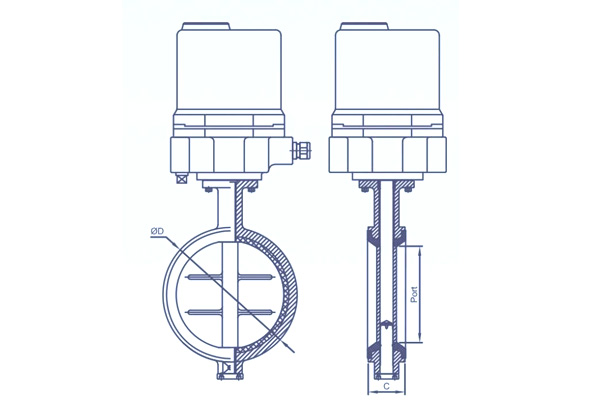

Motorized Centric Butterfly Valve
| Model | 4MBP |
| Size | 1.1/2” to 4” |
| MOC | CI/WCB/CF8/CF8M |
| Seals | NBR/EPDM |
| Pressure | PN10/PN16 |
| Temp. | Upto 80/120c (Depending upon MOC) |
| End | Wafer/Lug/Flanged Type |
| Size | Port | C | ØD |
| Tolerance | ±1mm | ±3mm | ±5mm |
| (1.1/2”)40mm | 40 | 34 | 80 |
| (2”)50mm | 50 | 44 | 95 |
| (2.1/2”)65mm | 65 | 46 | 108 |
| (3”)80mm | 80 | 46 | 124 |
| (4”)100mm | 100 | 52 | 150 |
Others

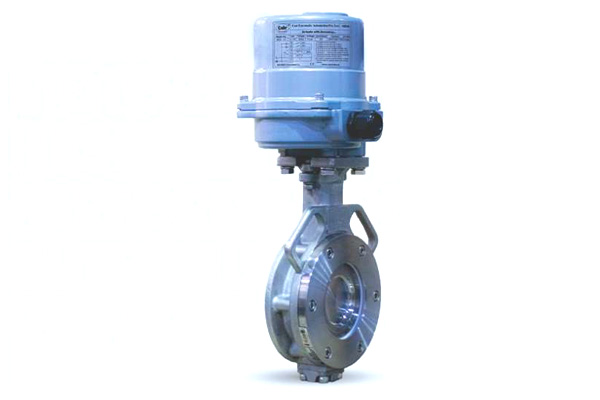

Motorized High Performance Butterfly Valves
