4MGLO Series
2 Way Plug Valve Screwed End
Description
“4M-GLE” Series Pneumatic Actuator Operated 2 Way PTFE Sleeved, Plug Valves Screwed (BSP/NPT)
“4Matic” Plug Valves are designed to offer superior performance in various industrial applications. Design inherent reduction in pressure drop leads to higher efficiency and better flow rates. Long service life, unmatched sealing capacity and ease of maintenance thanks to ingenious design make the 4matic plug valves a preferred choice in severe service conditions.
“4M-GLS” Series Hand lever Operated 2 Way PTFE Sleeved, Plug Valves Screwed (BSP/NPT)
“4Matic” Plug valves are designed to offer superior performance in various industrial applications Design Inherent reduction in pressure drop leads to higher efficiency and better flow rates. Long service life, unmatched sealing capacity and ease of maintenance thanks to ingenious design make the 4Matic plug valves a preferred choice in severe service conditions.
Size Range : 1/2″to 2″ (15 MM to 50 MM)
Technical Specification
“4M-GLE” Series Pneumatic Actuator Operated 2 Way PTFE Sleeved, Plug Valves Screwed (BSP/NPT)
Standard
| Design And Manufacturing | API 599 / BS 5353 |
| Valve Face To Face Dimension | As Per Mfg Std. |
| Thred End Standard Conformity | ASME B. 1.20.1 |
| Inspection & Testing | API 598 / EN 12266-1 |
| Leakage Class | CLASS VI ISO – 5208 |
| 150# DIMENSION | ||||
| VALVE MODEL | VALVE SIZE | L ( SCREWED) | WEIGHT ( APPROX) | |
| NB | INCH | |||
| 4M-GLO-15 | 15 | 1/2″ | 82.5 | 1.100 |
| 4M-GLO-20 | 20 | 3/4″ | 82.5 | 1.100 |
| 4M-GLO-25 | 25 | 1” | 118 | 2.250 |
| 4M-GLO-32 | 32 | 1.1/4” | 118 | 2.520 |
| 4M-GLO-40 | 40 | 1.1/2” | 140 | 3.500 |
| 4M-GLO-50 | 50 | 2” | 165 | 6.150 |
| All Dimensions are in mm & Weight is for Bare Shaft only | ||||

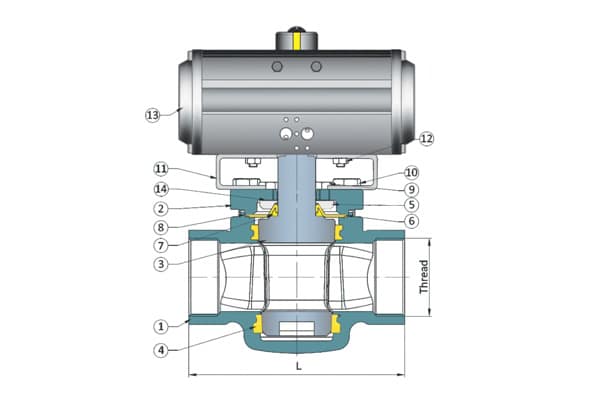

| Sr. No. | Description | MOC |
| 01 | Body | WCB/CF8/CF8M/CF3M/CD4MCu |
| 02 | Cover | WCB/CF8/CF8M/CF3M/CD4MCu |
| 03 | Plug | CF8/CF8M/CF3M/CD4MCu |
| 04 | Plug Sleeve | PTFE/CFT/GFT |
| 05 | Thrust Collar | SS 304 |
| 06 | Diaphragm | PTFE/CFT/GFT |
| 07 | Wedge Ring | PTFE/CFT/GFT |
| 08 | Metal Diaphragm | SS 304 |
| 09 | Adjusting Hex Bolt | SS 304 |
| 10 | Body Fitting Hex Bolt | SS 304 |
| 11 | Act.fitting plate | SS 304 |
| 12 | Act.fitting plate Hex Bolt | SS 304 |
| 13 | Actuator | STD. |
| 14 | Stattic Element | SS 304 |
| Note: Special Metal & Higher Alloys available on request | ||
“4M-GLS” Series Hand lever Operated 2 Way PTFE Sleeved, Plug Valves Screwed (BSP/NPT)
Standard
| Design And Manufacturing | API 599 / BS 5353 |
| Valve Face To Face Dimension | As Per Mfg Std. |
| Thred End Standard Conformity | ASME B. 1.20.1 |
| Inspection & Testing | API 598 / EN 12266-1 |
| Leakage Class | CLASS VI ISO – 5208 |
| 150# DIMENSION | ||||
| VALVE MODEL | VALVE SIZE | L ( SCREWED) | WEIGHT ( APPROX) | |
| NB | INCH | |||
| 4M-GLS-15 | 15 | 1/2″ | 82.5 | 1.100 |
| 4M-GLS-20 | 20 | 3/4″ | 82.5 | 1.100 |
| 4M-GLS-25 | 25 | 1” | 118 | 2.250 |
| 4M-GLS-32 | 32 | 1.1/4” | 118 | 2.520 |
| 4M-GLS-40 | 40 | 1.1/2” | 140 | 3.500 |
| 4M-GLS-50 | 50 | 2” | 165 | 6.150 |
| ( All Dimensions are in mm & Weight is for Bare Shaft only) | ||||

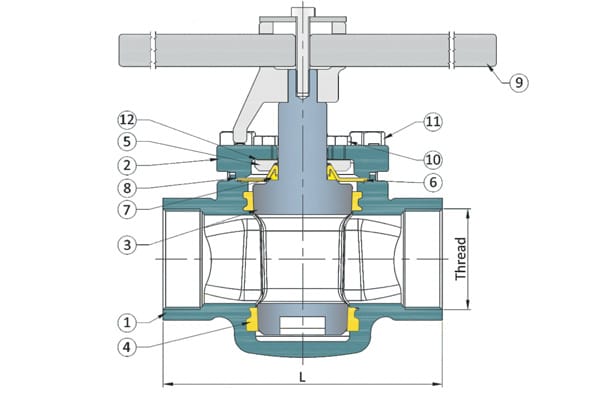

| Sr. No. | Description | MOC |
| 01 | Body | WCB/CF8/CF8M/CF3M/CD4MCu |
| 02 | Cover | WCB/CF8/CF8M/CF3M/CD4MCu |
| 03 | Plug | CF8/CF8M/CF3M/CD4MCu |
| 04 | Plug Sleeve | PTFE/CFT/GFT |
| 05 | Thrust Collar | SS 304 |
| 06 | Diaphragm | PTFE/CFT/GFT |
| 07 | Wedge Ring | PTFE/CFT/GFT |
| 08 | Metal Diaphragm | SS 304 |
| 09 | Handle Rod | SS 302 |
| 10 | Adjusting Hex Bolt | SS 304 |
| 11 | Body Fitting Hex Bolt | SS 304 |
| 12 | Static Eleminator | SS 304 |
| Note:Special Metal & Higher Alloys available on request | ||
