4MVGO Series
2 PC. Design “VGO” Floating Ball Valve
Size Range : 1/2″ to 10″ Flanged 150# / 300# / 600#
Description
“4Matic” Offers Pneumatic Actuator Operated High Performance Two Piece Design Floating Ball Valve. Engineered for vigorous application with reliable long life.
Technical Specification
| Standard | |
| Design And Manufacturing | BS EN ISO 17292 / ASME B 16.34 |
| Valve Face To Face Dimension | ASME B 16.10 |
| Flange Standard Conformity | ASME B 16.5 Class 150 / 300 |
| Inspection & Testing | API 598 / ISO – 5208 / BS EN 12266 – 1 |
| Leakage Class | Class VI ISO – 5208 |
Accessories:
- On / OFF Indicator
- NAMUR Standard Solenoid Valve in all Standard Coil Voltage (Flame Proof Solenoid Coil – On Request)
- Pneumatic & Electro-Pneumatic valve positioner
- Declutchable Manual Over – Ride
- Limit Switches for On / Off Indication at Panel Board
- Filter + Regulator Combination with Pressure Gauge
- Air Lock Valve

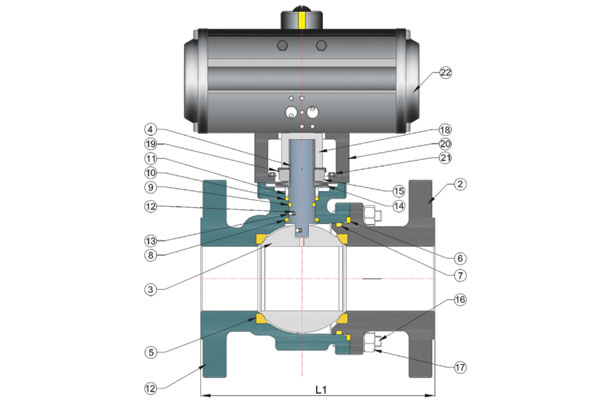

| Sr.No. | Description | Material |
| 1 | Body | WCB / CF8 / CF8M / CF3M |
| 2 | Connector | WCB / CF8 / CF8M / CF3M |
| 3 | Ball | CF8 / CF8M / CF3M |
| 4 | Stem Pin | S. S. 304 / 316 |
| 5 | Ball Seat | PTFE / GFT / CFT / TFM |
| 6 | Body Seat | Grafoil |
| 7 | Conn. ‘0’ Ring | NBR / EPFM / VITON |
| 8 | Stem Seat Bottom | PTFE / GFT / CFT / TFM |
| 9 | Stem ‘0’ Ring | NBR / EPFM / VITON |
| 10 | Stem Seat Top | Grafoil |
| 11 | Spacer Ring | S. S. 304 / 316 |
| 12 | Antistatic Spring | S. S. 302 |
| 13 | Antistatic Ball | S. S. 304 |
| 14 | Disc Spring | Spring Steel |
| 15 | Stem & Handle Nut | S. S. 304 |
| 16 | Fitting Stud | I H. T. / S. S. 304 |
| 17 | Fitting Nut + Spring Washer | H. T. / S. S. 304 |
| 18 | Adapter | S. S. 304 |
| 19 | Lock Washer | S. S. 304 |
| 20 | Bracket | WCB / CF8 / CF8M |
| 21 | Brac. Fitting Hexbolt + Spring Washer | S. S. 304 |
| 22 | Actuator | STD. |
Flanged 150# Dimensions :
| Valve Model | Valve Size | L1 | Weight Approx. | |
| Inch | MM | |||
| 4M-VGO-15 | 1/2″ | 15 | 108 | 2.400 |
| 4M-VGO – 20 | 3/4″ | 20 | 117 | 4.600 |
| 4M-VGO – 25 | 1″ | 25 | 127 | 5.100 |
| 4M-VGO – 32 | 1.1/4″ | 32 | 140 | 5.800 |
| 4M-VGO – 40 | 1.1/2″ | 40 | 165 | 8.750 |
| 4M-VGO – 50 | 2″ | 50 | 178 | 10.800 |
| 4M-VGO – 65 | 2.1/2″ | 65 | 190 | 16.200 |
| 4M-VGO – 80 | 3″ | 80 | 203 | 24.750 |
| 4M-VGO – 100 | 4″ | 100 | 229 | 36.150 |
| 4M-VGO – 125 | 5″ | 125 | 254 | 56.900 |
| 4M-VGO – 150 | 6″ | 150 | 267 | 90.800 |
| 4M-VGO – 200 | 8″ | 200 | 457 | 175.750 |
| 4M-VGO – 250 | 10″ | 250 | 533.4 | — |
| 4M-VGO – 300 | 12″ | 300 | 609.6 | — |
| 4M-VG0 – 350 | 14″ | 350 | — | — |
Flanged 300# Dimensions :
| Valve Model | Valve Size | L1 | Weight Approx. | |
| Inch | MM | |||
| 4M-3VGO-15 | 1/2″ | 15 | 140 | 3.550 |
| 4M-3VGO – 20 | 3/4″ | 20 | 152 | 6.050 |
| 4M-3VGO – 25 | 1″ | 25 | 165 | 8.450 |
| 4M-3VGO – 32 | 1.1/4″ | 32 | 178 | 10.750 |
| 4M-3VGO – 40 | 1.1/2″ | 40 | 190 | 14.700 |
| 4M-3VGO – 50 | 2″ | 50 | 216 | 18.850 |
| 4M-3VGO – 65 | 2.1/2″ | 65 | 241 | 27.490 |
| 4M-3VGO – 80 | 3″ | 80 | 282 | 38.000 |
| 4M-3VGO – 100 | 4″ | 100 | 305 | 59.700 |
| 4M-3VGO – 125 | 5″ | 125 | 381 | 99.000 |
| 4M-3VGO – 150 | 6″ | 150 | 403 | 113.880 |
| 4M-3VGO – 200 | 8″ | 200 | 502 | 235.900 |
| 4M-3VGO – 250 | 10″ | 250 | 568.4 | — |
| 4M-3VGO – 300 | 12″ | 300 | 648 | — |
| 4M-VG0 – 350 | 14″ | 350 | — | — |
For Ball Valves Flange Standards Dimension Table :
| As Per ASME B16.5 150# Dimensions Table | ||||||||||
| Valve Size | Port | L1 | ØD | Øg | b | f | ØJ | N | PCD | |
| Inch | MM | |||||||||
| 1/2″ | 15 | 13 | 108 | 90 | 34.9 | 9.6 | 2 | 15.9 | 4 | 60.3 |
| 3/4″ | 20 | 19 | 117 | 100 | 42.9 | 11.2 | 2 | 15.9 | 4 | 69.9 |
| 1″ | 25 | 25 | 127 | 110 | 50.8 | 12.7 | 2 | 15.9 | 4 | 79.4 |
| 1.1/4″ | 32 | 32 | 140 | 115 | 63.5 | 14.3 | 2 | 15.9 | 4 | 88.9 |
| 1.1/2″ | 40 | 38 | 165 | 125 | 73 | 15.9 | 2 | 15.9 | 4 | 98.4 |
| 2″ | 50 | 49 | 178 | 150 | 92.1 | 17.5 | 2 | 19.05 | 4 | 120.7 |
| 2.1/2″ | 65 | 62 | 190 | 180 | 104.8 | 20.7 | 2 | 19.05 | 4 | 139.7 |
| 3″ | 80 | 74 | 203 | 190 | 127 | 22.3 | 2 | 19.05 | 4 | 152.4 |
| 4″ | 100 | 100 | 229 | 230 | 157.2 | 22.3 | 2 | 19.05 | 8 | 190.5 |
| 5″ | 125 | 125 | 254 | 255 | 185.7 | 22.3 | 2 | 22.2 | 8 | 215.9 |
| 6″ | 150 | 150 | 267 | 280 | 215.9 | 23.9 | 2 | 22.2 | 8 | 241.3 |
| 8″ | 200 | 201 | 292 | 345 | 269.9 | 27 | 2 | 22.2 | 8 | 298.5 |
| 10″ | 250 | 252 | 330 | 405 | 323.8 | 28.6 | 2 | 25.4 | 12 | 362 |
| 12″ | 300 | 303 | 610 | 485 | 381 | 30.2 | 2 | 25.4 | 12 | 431.8 |
(All Dimensions are in mm)
| As Per ASME B16.5 300# Dimensions Table | ||||||||||
| Valve Size | Port | L1 | ØD | Øg | b | f | ØJ | N | PCD | |
| Inch | MM | |||||||||
| 1/2″ | 15 | 13 | 140 | 95 | 34.9 | 12.7 | 2 | 15.9 | 4 | 66.7 |
| 3/4″ | 20 | 19 | 152 | 115 | 42.9 | 14.3 | 2 | 19.05 | 4 | 82.6 |
| 1″ | 25 | 25 | 165 | 125 | 50.8 | 15.9 | 2 | 19.05 | 4 | 88.9 |
| 1.1/4″ | 32 | 32 | 178 | 135 | 63.5 | 17.5 | 2 | 19.05 | 4 | 98.4 |
| 1.1/2″ | 40 | 38 | 190 | 155 | 73 | 19.1 | 2 | 22.2 | 4 | 114.3 |
| 2″ | 50 | 49 | 216 | 165 | 92.1 | 20.7 | 2 | 19.05 | 8 | 127 |
| 2.1/2″ | 65 | 62 | 241 | 190 | 104.8 | 23.9 | 2 | 22.2 | 8 | 149.2 |
| 3″ | 80 | 74 | 282 | 210 | 127 | 27 | 2 | 22.2 | 8 | 168.3 |
| 4″ | 100 | 100 | 305 | 255 | 157.2 | 30.2 | 2 | 22.2 | 8 | 200 |
| 5″ | 125 | 125 | 381 | 280 | 185.7 | 33.4 | 2 | 22.2 | 8 | 235 |
| 6″ | 150 | 150 | 403 | 320 | 215.9 | 35 | 2 | 22.2 | 12 | 269.9 |
| 8″ | 200 | 201 | 419 | 380 | 269.9 | 39.7 | 2 | 25.4 | 12 | 330.2 |
| 10″ | 250 | 252 | 457 | 445 | 323.8 | 46.1 | 2 | 28.6 | 16 | 387.4 |
| 12″ | 300 | 303 | 648 | 520 | 381 | 49.3 | 2 | 31.75 | 16 | 450.8 |
(All Dimensions are in mm)
| As Per ASME B16.5 600# Dimensions Table | ||||||||||
| Valve Size | Port | L1 | ØD | Øg | b | f | ØJ | N | PCD | |
| Inch | MM | |||||||||
| 1/2″ | 15 | 13 | 165 | 95 | 34.9 | 14.3 | 7 | 15.9 | 4 | 66.7 |
| 3/4″ | 20 | 19 | 190 | 115 | 42.9 | 15.9 | 7 | 19.05 | 4 | 82.6 |
| 1″ | 25 | 25 | 216 | 125 | 50.8 | 17.5 | 7 | 19.05 | 4 | 88.9 |
| 1.1/4″ | 32 | 32 | 229 | 135 | 63.5 | 20.7 | 7 | 19.05 | 4 | 98.4 |
| 1.1/2″ | 40 | 38 | 241 | 155 | 73 | 22.3 | 7 | 22.2 | 4 | 114.3 |
| 2″ | 50 | 49 | 292 | 165 | 92.1 | 25.4 | 7 | 19.05 | 8 | 127 |
| 2.1/2″ | 65 | 62 | 330 | 190 | 104.8 | 28.6 | 7 | 22.2 | 8 | 149.2 |
| 3″ | 80 | 74 | 356 | 210 | 127 | 31.8 | 7 | 22.2 | 8 | 168.3 |
| 4″ | 100 | 100 | 432 | 275 | 157.2 | 38.1 | 7 | 25.4 | 8 | 215.9 |
| 5″ | 125 | 125 | 508 | 330 | 185.7 | 44.5 | 7 | 28.6 | 8 | 266.7 |
| 6″ | 150 | 150 | 559 | 355 | 215.9 | 47.7 | 7 | 28.6 | 12 | 292.1 |
| 8″ | 200 | 201 | 660 | 420 | 269.9 | 55.6 | 7 | 31.75 | 12 | 349.2 |
| 10″ | 250 | 252 | 787 | 510 | 323.8 | 63.5 | 7 | 34.9 | 16 | 431.8 |
| 12″ | 300 | 303 | 838 | 560 | 381 | 66.7 | 7 | 34.9 | 20 | 489 |
(All Dimensions are in mm)
Note : 900# / 1500# / 2500# Available On Request.
