4MSUZ Series
3 Way/ 4Way/ 5 Way Trunnion Ball Valve
Size Range : 5″ to 12″ Flanged 150# / 300#
Description
“4Matic” Offers Pneumatic Rotary Actuator Operated “3, 4 & 5 Way” Design Investment Casting CF8 / CF8M / WCB Trunnion Ball Valve, engineered for multiple Diverting / Mixing Operations in the down stream. TYPE : “T” . PORT / “L” . PORT / “X” . PORT In Full Bore / Reduce Bore.
Technical Specification
| Standard | |
| Design And Manufacturing | ASME B 16.34 |
| Valve Face To Face Dimension | As Per Manufacturer Std. |
| Flange Standard Conformity | ASME B 16.5 Class 150 & 300 |
| Inspection & Testing | API 598 / ISO – 5208 / BS EN 12266 – ISO 5208 |
Accessories:
- On / OFF Indicator
- NAMUR Standard Solenoid Valve in all Standard Coil Voltage (Flame Proof Solenoid Coil – On Request)
- Pneumatic & Electro-Pneumatic valve positioner
- Declutchable Manual Over – Ride
- Limit Switches for On / Off Indication at Panel Board
- Filter + Regulator Combination with Pressure Gauge
- Air Lock Valve

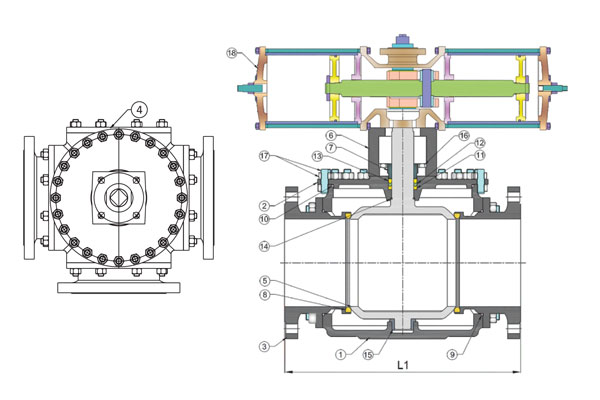

Flanged Dimensions :
| Model | Valve Size | L1 (F to F) | 150# Weight Approx. | 300# Weight Approx. | |||||
| 3 Way | 4 Way | Inch | MM | 150# | 300# | 3 Way | 4 Way | 3 Way | 4 Way |
| 4M-SUZ – 125 | SUZ – 125 | 5″ | 125 | 418 | 450 | 101.9 | 108.2 | 143.4 | 155.8 |
| 4M-SUZ – 150 | SUZ – 125 | 6″ | 150 | 437 | 477 | 129.3 | 136.25 | 172.38 | 189.2 |
| 4M-SUZ – 200 | SUZ – 125 | 8″ | 200 | 538 | 561 | 210.8 | 231.5 | 248.8 | 282.1 |
| 4M-SUZ – 250 | SUZ – 125 | 10″ | 250 | 662 | 760 | 319.1 | 348.9 | 394.8 | 449.88 |
| 4M-SUZ – 300 | SUZ – 125 | 12″ | 300 | 662 | 503.2 | 564.214 | |||
(All Dimensions are in mm)
| Sr. No. | Description | Material |
| 1 | Body | WCB / CF8 / CF8M / CF3M |
| 2 | Top Cover | WCB / CF8 / CF8M / CF3M |
| 3 | Flange End | WCB / CF8 / CF8M / CF3M |
| 4 | Blind End | WCB / CF8 / CF8M / CF3M |
| 5 | Ball | CF8 / CF8M / CF3M |
| 6 | Bracket | WCB / CF8 / CF8M |
| 7 | Gland | WCB / CF8 / CF8M |
| 8 | Ball Seat | PTFE / CFT / GFT / TFM |
| 9 | Body Gasket | PTFE / CFT / GFT / TFM |
| 10 | Top Cover Gasket | PTFE / CFT / GFT / TFM |
| 11 | Base Seat | PTFE / CFT / GFT / TFM |
| 12 | U – Seat | PTFE / CFT / GFT / TFM |
| 13 | V – Seat | PTFE / CFT / GFT / TFM |
| 14 | ‘O’ – Ring | Viton |
| 15 | Bush | CFT / PTFE |
| 16 | Bracket & Gland Fitting Bolt | M. S. / S.S. |
| 17 | Fitting Stud + Nut | M. S. / S. S. |
| 18 | Actuator | STD. |
For Ball Valves Flange Standards Dimension Table :
| As Per ASME B16.5 150# Dimensions Table | ||||||||||
| Valve Size | Port | L1 | ØD | Øg | b | f | ØJ | N | PCD | |
| Inch | MM | |||||||||
| 1/2″ | 15 | 13 | 108 | 90 | 34.9 | 9.6 | 2 | 15.9 | 4 | 60.3 |
| 3/4″ | 20 | 19 | 117 | 100 | 42.9 | 11.2 | 2 | 15.9 | 4 | 69.9 |
| 1″ | 25 | 25 | 127 | 110 | 50.8 | 12.7 | 2 | 15.9 | 4 | 79.4 |
| 1.1/4″ | 32 | 32 | 140 | 115 | 63.5 | 14.3 | 2 | 15.9 | 4 | 88.9 |
| 1.1/2″ | 40 | 38 | 165 | 125 | 73 | 15.9 | 2 | 15.9 | 4 | 98.4 |
| 2″ | 50 | 49 | 178 | 150 | 92.1 | 17.5 | 2 | 19.05 | 4 | 120.7 |
| 2.1/2″ | 65 | 62 | 190 | 180 | 104.8 | 20.7 | 2 | 19.05 | 4 | 139.7 |
| 3″ | 80 | 74 | 203 | 190 | 127 | 22.3 | 2 | 19.05 | 4 | 152.4 |
| 4″ | 100 | 100 | 229 | 230 | 157.2 | 22.3 | 2 | 19.05 | 8 | 190.5 |
| 5″ | 125 | 125 | 254 | 255 | 185.7 | 22.3 | 2 | 22.2 | 8 | 215.9 |
| 6″ | 150 | 150 | 267 | 280 | 215.9 | 23.9 | 2 | 22.2 | 8 | 241.3 |
| 8″ | 200 | 201 | 292 | 345 | 269.9 | 27 | 2 | 22.2 | 8 | 298.5 |
| 10″ | 250 | 252 | 330 | 405 | 323.8 | 28.6 | 2 | 25.4 | 12 | 362 |
| 12″ | 300 | 303 | 610 | 485 | 381 | 30.2 | 2 | 25.4 | 12 | 431.8 |
(All Dimensions are in mm)
| As Per ASME B16.5 300# Dimensions Table | ||||||||||
| Valve Size | Port | L1 | ØD | Øg | b | f | ØJ | N | PCD | |
| Inch | MM | |||||||||
| 1/2″ | 15 | 13 | 140 | 95 | 34.9 | 12.7 | 2 | 15.9 | 4 | 66.7 |
| 3/4″ | 20 | 19 | 152 | 115 | 42.9 | 14.3 | 2 | 19.05 | 4 | 82.6 |
| 1″ | 25 | 25 | 165 | 125 | 50.8 | 15.9 | 2 | 19.05 | 4 | 88.9 |
| 1.1/4″ | 32 | 32 | 178 | 135 | 63.5 | 17.5 | 2 | 19.05 | 4 | 98.4 |
| 1.1/2″ | 40 | 38 | 190 | 155 | 73 | 19.1 | 2 | 22.2 | 4 | 114.3 |
| 2″ | 50 | 49 | 216 | 165 | 92.1 | 20.7 | 2 | 19.05 | 8 | 127 |
| 2.1/2″ | 65 | 62 | 241 | 190 | 104.8 | 23.9 | 2 | 22.2 | 8 | 149.2 |
| 3″ | 80 | 74 | 282 | 210 | 127 | 27 | 2 | 22.2 | 8 | 168.3 |
| 4″ | 100 | 100 | 305 | 255 | 157.2 | 30.2 | 2 | 22.2 | 8 | 200 |
| 5″ | 125 | 125 | 381 | 280 | 185.7 | 33.4 | 2 | 22.2 | 8 | 235 |
| 6″ | 150 | 150 | 403 | 320 | 215.9 | 35 | 2 | 22.2 | 12 | 269.9 |
| 8″ | 200 | 201 | 419 | 380 | 269.9 | 39.7 | 2 | 25.4 | 12 | 330.2 |
| 10″ | 250 | 252 | 457 | 445 | 323.8 | 46.1 | 2 | 28.6 | 16 | 387.4 |
| 12″ | 300 | 303 | 648 | 520 | 381 | 49.3 | 2 | 31.75 | 16 | 450.8 |
(All Dimensions are in mm)
| As Per ASME B16.5 600# Dimensions Table | ||||||||||
| Valve Size | Port | L1 | ØD | Øg | b | f | ØJ | N | PCD | |
| Inch | MM | |||||||||
| 1/2″ | 15 | 13 | 165 | 95 | 34.9 | 14.3 | 7 | 15.9 | 4 | 66.7 |
| 3/4″ | 20 | 19 | 190 | 115 | 42.9 | 15.9 | 7 | 19.05 | 4 | 82.6 |
| 1″ | 25 | 25 | 216 | 125 | 50.8 | 17.5 | 7 | 19.05 | 4 | 88.9 |
| 1.1/4″ | 32 | 32 | 229 | 135 | 63.5 | 20.7 | 7 | 19.05 | 4 | 98.4 |
| 1.1/2″ | 40 | 38 | 241 | 155 | 73 | 22.3 | 7 | 22.2 | 4 | 114.3 |
| 2″ | 50 | 49 | 292 | 165 | 92.1 | 25.4 | 7 | 19.05 | 8 | 127 |
| 2.1/2″ | 65 | 62 | 330 | 190 | 104.8 | 28.6 | 7 | 22.2 | 8 | 149.2 |
| 3″ | 80 | 74 | 356 | 210 | 127 | 31.8 | 7 | 22.2 | 8 | 168.3 |
| 4″ | 100 | 100 | 432 | 275 | 157.2 | 38.1 | 7 | 25.4 | 8 | 215.9 |
| 5″ | 125 | 125 | 508 | 330 | 185.7 | 44.5 | 7 | 28.6 | 8 | 266.7 |
| 6″ | 150 | 150 | 559 | 355 | 215.9 | 47.7 | 7 | 28.6 | 12 | 292.1 |
| 8″ | 200 | 201 | 660 | 420 | 269.9 | 55.6 | 7 | 31.75 | 12 | 349.2 |
| 10″ | 250 | 252 | 787 | 510 | 323.8 | 63.5 | 7 | 34.9 | 16 | 431.8 |
| 12″ | 300 | 303 | 838 | 560 | 381 | 66.7 | 7 | 34.9 | 20 | 489 |
(All Dimensions are in mm)
Note : 900# / 1500# / 2500# Available On Request.
