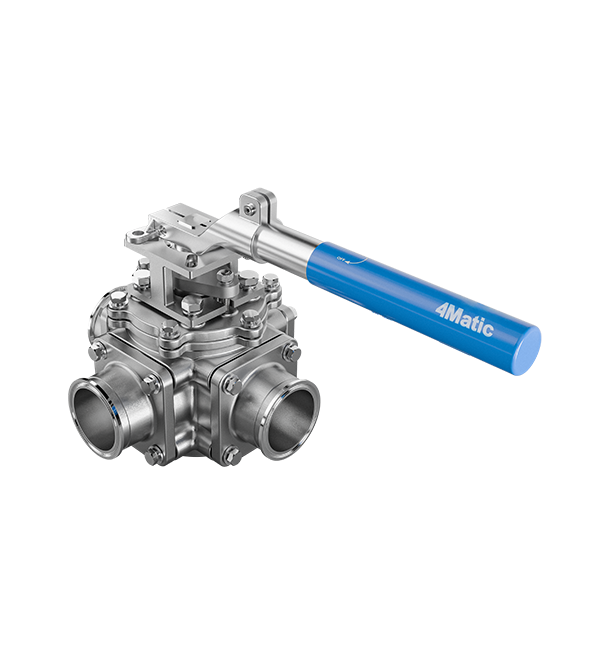

3 Way-4 Way Ball Valve – Triclover End

4MSUZ Series

3 Way – 4 Way Ball Valve – Triclover End

Technical Specification

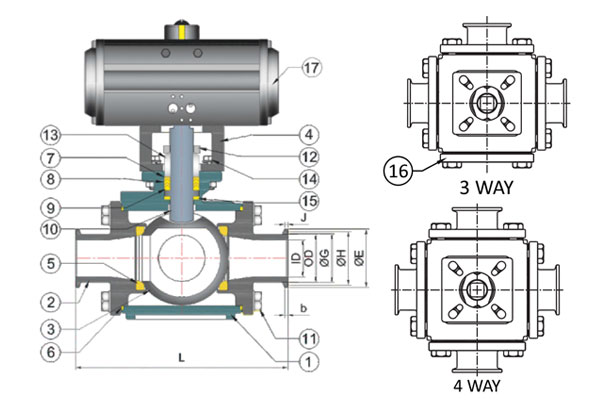

Dimensions :

Valve Model	Valve Size		L	ØE	ØG	ØH	ID	OD	J	B	Weight Approx.
Valve Model	Inch	MM	L	ØE	ØG	ØH	ID	OD	J	B	3 Way	4 Way
4M-SUT – 15	1/2″	15	133	34	25.5	29.5	12.5	18.5	2.8	1.5	3.740	3.840
4M-SUT – 20	3/4″	20	140	34	25.5	29.5	17	23	2.8	1.5	4.320	4.420
4M-SUT – 25	1″	25	160	50.5	42	46	24	31	2.8	1.5	7.240	7.380
4M-SUT – 40	1.1/2″	40	184	50.5	42	46	32	41	2.8	1.5	12.500	12.740
4M-SUT – 50	2″	50	217	64	55.5	59.5	42.5	52.5	2.8	1.5	20.960	21.360

(All Dimensions are in mm)

Sr. No.	Description	Material
1	Body	WCB / CF8 / CF8M / CF3M
2	Connector	WCB / CF8 / CF8M / CF3M
3	Ball	CF8 / CF8M / CF3M
4	Bracket	WCB / CF8 / CF8M
5	Ball Seat	PTFE / GFT / CFT / TFM
6	Body Seat	PTFE / GFT / CFT / TFM
7	U – Seat	PTFE / GFT / CFT / TFM
8	V – Seat	PTFE / GFT / CFT / TFM
9	Base Seat	PTFE / GFT / CFT / TFM
10	Stem Pin	S. S. 304 / S. S. 316
11	Body Fitting Hex Bolt + Washer	S. S. 304
12	Gland	WCB / CF8 / CF8M
13	Gland Bush	S. S. 304
14	Bracket Fitting Bolt + Nut & Washer	S. S. 304
15	Stem Packing	PTFE / GFT / CFT / TFM
16	Blind End	WCB / CF8 / CF8M / CF3M
17	Actuator	STD.

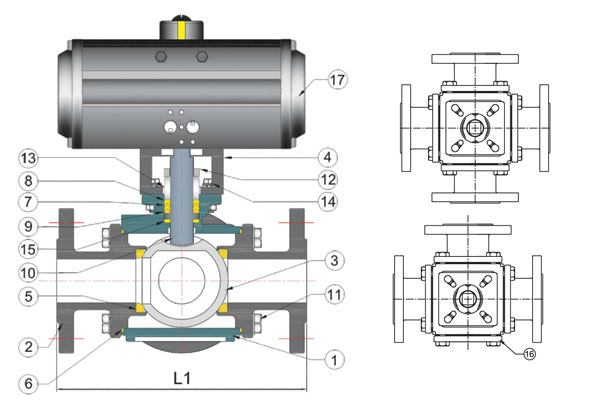

For Ball Valves Flange Standards Dimension Table :

As Per ASME B16.5 150# Dimensions Table
Valve Size		Port	L1	ØD	Øg	b	f	ØJ	N	PCD
Inch	MM	Port	L1	ØD	Øg	b	f	ØJ	N	PCD
1/2″	15	13	108	90	34.9	9.6	2	15.9	4	60.3
3/4″	20	19	117	100	42.9	11.2	2	15.9	4	69.9
1″	25	25	127	110	50.8	12.7	2	15.9	4	79.4
1.1/4″	32	32	140	115	63.5	14.3	2	15.9	4	88.9
1.1/2″	40	38	165	125	73	15.9	2	15.9	4	98.4
2″	50	49	178	150	92.1	17.5	2	19.05	4	120.7
2.1/2″	65	62	190	180	104.8	20.7	2	19.05	4	139.7
3″	80	74	203	190	127	22.3	2	19.05	4	152.4
4″	100	100	229	230	157.2	22.3	2	19.05	8	190.5
5″	125	125	254	255	185.7	22.3	2	22.2	8	215.9
6″	150	150	267	280	215.9	23.9	2	22.2	8	241.3
8″	200	201	292	345	269.9	27	2	22.2	8	298.5
10″	250	252	330	405	323.8	28.6	2	25.4	12	362
12″	300	303	610	485	381	30.2	2	25.4	12	431.8

(All Dimensions are in mm)

As Per ASME B16.5 300# Dimensions Table
Valve Size		Port	L1	ØD	Øg	b	f	ØJ	N	PCD
Inch	MM	Port	L1	ØD	Øg	b	f	ØJ	N	PCD
1/2″	15	13	140	95	34.9	12.7	2	15.9	4	66.7
3/4″	20	19	152	115	42.9	14.3	2	19.05	4	82.6
1″	25	25	165	125	50.8	15.9	2	19.05	4	88.9
1.1/4″	32	32	178	135	63.5	17.5	2	19.05	4	98.4
1.1/2″	40	38	190	155	73	19.1	2	22.2	4	114.3
2″	50	49	216	165	92.1	20.7	2	19.05	8	127
2.1/2″	65	62	241	190	104.8	23.9	2	22.2	8	149.2
3″	80	74	282	210	127	27	2	22.2	8	168.3
4″	100	100	305	255	157.2	30.2	2	22.2	8	200
5″	125	125	381	280	185.7	33.4	2	22.2	8	235
6″	150	150	403	320	215.9	35	2	22.2	12	269.9
8″	200	201	419	380	269.9	39.7	2	25.4	12	330.2
10″	250	252	457	445	323.8	46.1	2	28.6	16	387.4
12″	300	303	648	520	381	49.3	2	31.75	16	450.8

(All Dimensions are in mm)

As Per ASME B16.5 600# Dimensions Table
Valve Size		Port	L1	ØD	Øg	b	f	ØJ	N	PCD
Inch	MM	Port	L1	ØD	Øg	b	f	ØJ	N	PCD
1/2″	15	13	165	95	34.9	14.3	7	15.9	4	66.7
3/4″	20	19	190	115	42.9	15.9	7	19.05	4	82.6
1″	25	25	216	125	50.8	17.5	7	19.05	4	88.9
1.1/4″	32	32	229	135	63.5	20.7	7	19.05	4	98.4
1.1/2″	40	38	241	155	73	22.3	7	22.2	4	114.3
2″	50	49	292	165	92.1	25.4	7	19.05	8	127
2.1/2″	65	62	330	190	104.8	28.6	7	22.2	8	149.2
3″	80	74	356	210	127	31.8	7	22.2	8	168.3
4″	100	100	432	275	157.2	38.1	7	25.4	8	215.9
5″	125	125	508	330	185.7	44.5	7	28.6	8	266.7
6″	150	150	559	355	215.9	47.7	7	28.6	12	292.1
8″	200	201	660	420	269.9	55.6	7	31.75	12	349.2
10″	250	252	787	510	323.8	63.5	7	34.9	16	431.8
12″	300	303	838	560	381	66.7	7	34.9	20	489

(All Dimensions are in mm)

Note : 900# / 1500# / 2500# Available On Request.
