4MPC Series
3 Way UPVC Ball Valve
Size Range : 1/2″ to 3″ Screwed / Socket Weld
Description
“4Matic” Offers Pneumatic Rotary Actuator Operated UPVC Ball Valve, 3 Way PVC Ball Valve is made with precision turning and grinding to ensure that it’s true roundness and smoothness is achieved. This provides for lower torque requirement and ease of handling. True union design provides for tight shut – off. These valves are most suited for water treatment and chlorination applications.
Technical Specification
| Ball Valve Specification | |
| Working Pressure | 7 Kg/cm2 |
| Working Temperature | Upto 80°C Max. |
| Ends | Screwed End |
Advantage:
- NSF listed and material meet drinking water
- Smooth opening and closing thanks a lower torques
- 100% pure virgin material, CaCO3 free (Chalk)
- UV resistant power
- 100% pressure testing before leaving the factory
Accessories:
- On / OFF Indicator
- NAMUR Standard Solenoid Valve in all Standard Coil Voltage (Flame Proof Solenoid Coil – On Request)
- Pneumatic & Electro-Pneumatic valve positioner
- Declutchable Manual Over – Ride
- Limit Switches for On / Off Indication at Panel Board
- Filter + Regulator Combination with Pressure Gauge
- Air Lock Valve
Dimensions :
| Valve Model | Valve Size | L | |
| Inch | MM | ||
| 4M-PC – 15 | 1/2″ | 15 | 163 |
| 4M-PC – 20 | 3/4″ | 20 | 172 |
| 4M-PC – 25 | 1″ | 25 | 200 |
| 4M-PC – 32 | 1.1/4″ | 32 | 208 |
| 4M-PC – 40 | 1.1/2″ | 40 | 240 |
| 4M-PC – 50 | 2″ | 50 | On Req. |
| 4M-PC – 65 | 2.1/2″ | 65 | On Req. |
| 4M-PC – 80 | 3″ | 80 | On Req. |
(All Dimensions are in mm)

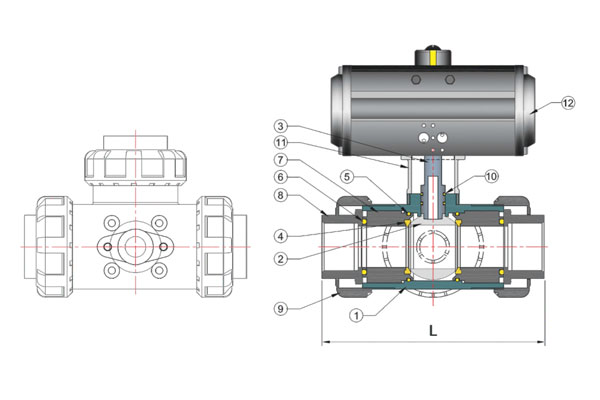

| Sr.No. | Description | Material |
| 1 | Body | UPVC |
| 2 | Ball | UPVC |
| 3 | Stem | UPVC |
| 4 | Ball Seat | PTFE / EPDM / Viton |
| 5 | Body ‘O’ – Ring | NBR |
| 6 | Body Connector ‘O’ Ring | NBR |
| 7 | Body Connector | UPVC |
| 8 | Connector | UPVC |
| 9 | Connector Nut | UPVC |
| 10 | Stem ‘O’ Ring | NBR |
| 11 | Bracket | CF8 / CF8M |
| 12 | Actuator | STD. |
