4MTRX Series
3Pc. Design Extended Shaft Floating Ball Valve
Size Range : 1/2″ to 4″ Screwed & Flanged
Description
“4Matic” Offers Pneumatic Actuator Operated Extended Shaft ‘Cryogenic’ Application Floating Ball Valve. Extended Shaft ball valve designed for using in the several conditions such as Cryogenic Gas Systems, Nitrogen Injection, Oil Recovery, Air Separation Plants, Steel Plants, Heat Treatment.
Technical Specification
| Standard | |
| Design And Manufacturing | ASME B 16.34 / BS EN ISO 17292 |
| Valve Face To Face Dimension | ASME B 16.10 |
| Flange Standard Conformity | ASME B 16.5 Class 150 / 300 / 600 |
| Inspection & Testing | API 598 / ISO – 5208 / BS EN 12266 – 1 |
| Leakage Class | Class VI ISO – 5208 |
Accessories:
- On / OFF Indicator
- NAMUR Standard Solenoid Valve in all Standard Coil Voltage (Flame Proof Solenoid Coil – On Request)
- Pneumatic & Electro-Pneumatic valve positioner
- Declutchable Manual Over – Ride
- Limit Switches for On / Off Indication at Panel Board
- Filter + Regulator Combination with Pressure Gauge
- Air Lock Valve
Screwed Dimensions :
| Valve Model | Valve Size | L | Weight Approx. | |
| Inch | MM | |||
| 4MTRX – 15 | 1/2″ | 15 | 64 | 0.740 |
| 4MTRX – 20 | 3/4″ | 20 | 70 | 0.980 |
| 4MTRX – 25 | 1″ | 25 | 88 | 1.220 |
| 4MTRX – 32 | 1.1/4″ | 32 | 105 | 2.340 |
| 4MTRX – 40 | 1.1/2″ | 40 | 114 | 5.380 |
| 4MTRX – 50 | 2″ | 50 | 130 | —- |
| 4MTRX – 65 | 2.1/2″ | 65 | 170 | —- |
| 4MTRX – 80 | 3″ | 80 | 200 | —- |
| 4MTRX – 100 | 4″ | 100 | 210 | —- |
(All Dimensions are in mm)
Note : We also provide Butt Weld & Socket Weld.
Flanged Dimensions :
| Valve Model | Valve Size | L1 | Weight Approx. | |
| Inch | MM | |||
| 4MTRX – 15 | 1/2″ | 15 | 108 | 2.640 |
| 4MTRX – 20 | 3/4″ | 20 | 117 | 3.680 |
| 4MTRX – 25 | 1″ | 25 | 127 | 6.020 |
| 4MTRX – 32 | 1.1/4″ | 32 | 140 | 10.000 |
| 4MTRX – 40 | 1.1/2″ | 40 | 165 | —- |
| 4MTRX – 50 | 2″ | 50 | 178 | —- |
| 4MTRX – 65 | 2.1/2″ | 65 | 190 | —- |
| 4MTRX – 80 | 3″ | 80 | 203 | —- |
| 4MTRX – 100 | 4″ | 100 | 229 | —- |
(All Dimensions are in mm)

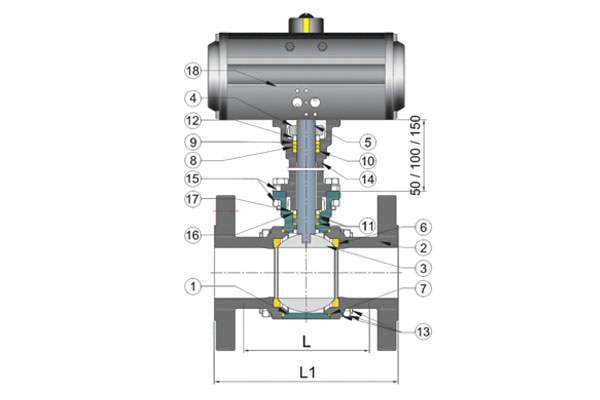

| Sr.No. | Description | Material |
| 1 | Body | WCB / CF8 / CF8M / CF3M |
| 2 | Connector | WCB / CF8 / CF8M / CF3M |
| 3 | Ball | CF8 / CF8M / CF3M |
| 4 | Gland | CF8 / CF8M / CF3M |
| 5 | Stem Pin | S.S 304 / S. S. 316 |
| 6 | Ball Seat | PTFE / GFT / CFT / TFM |
| 7 | Body Seat | PTFE / GFT / CFT / TFM |
| 8 | U – Seat | PTFE / GFT / CFT / TFM |
| 9 | V – Seat | PTFE / GFT / CFT / TFM |
| 10 | Base Seat | PTFE / GFT / CFT / TFM |
| 11 | Stem Seat Top & Bottom | PTFE / GFT / CFT / TFM |
| 12 | Spacer Ring | S.S 304 |
| 13 | Body Fitting Stud + Nut & Washer | S.S 304 |
| 14 | Bonnet | CF8 /CF8M |
| 15 | Bonnet Fitting Bolt & Nut | S.S 304 |
| 16 | Bonnet Bush | S.S 304 |
| 17 | ‘O’ Ring For Extended Bonnet | NBR |
| 18 | Actuator | STD. |
For Ball Valves Flange Standards Dimension Table :
| As Per ASME B16.5 150# Dimensions Table | ||||||||||
| Valve Size | Port | L1 | ØD | Øg | b | f | ØJ | N | PCD | |
| Inch | MM | |||||||||
| 1/2″ | 15 | 13 | 108 | 90 | 34.9 | 9.6 | 2 | 15.9 | 4 | 60.3 |
| 3/4″ | 20 | 19 | 117 | 100 | 42.9 | 11.2 | 2 | 15.9 | 4 | 69.9 |
| 1″ | 25 | 25 | 127 | 110 | 50.8 | 12.7 | 2 | 15.9 | 4 | 79.4 |
| 1.1/4″ | 32 | 32 | 140 | 115 | 63.5 | 14.3 | 2 | 15.9 | 4 | 88.9 |
| 1.1/2″ | 40 | 38 | 165 | 125 | 73 | 15.9 | 2 | 15.9 | 4 | 98.4 |
| 2″ | 50 | 49 | 178 | 150 | 92.1 | 17.5 | 2 | 19.05 | 4 | 120.7 |
| 2.1/2″ | 65 | 62 | 190 | 180 | 104.8 | 20.7 | 2 | 19.05 | 4 | 139.7 |
| 3″ | 80 | 74 | 203 | 190 | 127 | 22.3 | 2 | 19.05 | 4 | 152.4 |
| 4″ | 100 | 100 | 229 | 230 | 157.2 | 22.3 | 2 | 19.05 | 8 | 190.5 |
| 5″ | 125 | 125 | 254 | 255 | 185.7 | 22.3 | 2 | 22.2 | 8 | 215.9 |
| 6″ | 150 | 150 | 267 | 280 | 215.9 | 23.9 | 2 | 22.2 | 8 | 241.3 |
| 8″ | 200 | 201 | 292 | 345 | 269.9 | 27 | 2 | 22.2 | 8 | 298.5 |
| 10″ | 250 | 252 | 330 | 405 | 323.8 | 28.6 | 2 | 25.4 | 12 | 362 |
| 12″ | 300 | 303 | 610 | 485 | 381 | 30.2 | 2 | 25.4 | 12 | 431.8 |
| As Per ASME B16.5 300# Dimensions Table | ||||||||||
| Valve Size | Port | L1 | ØD | Øg | b | f | ØJ | N | PCD | |
| Inch | MM | |||||||||
| 1/2″ | 15 | 13 | 140 | 95 | 34.9 | 12.7 | 2 | 15.9 | 4 | 66.7 |
| 3/4″ | 20 | 19 | 152 | 115 | 42.9 | 14.3 | 2 | 19.05 | 4 | 82.6 |
| 1″ | 25 | 25 | 165 | 125 | 50.8 | 15.9 | 2 | 19.05 | 4 | 88.9 |
| 1.1/4″ | 32 | 32 | 178 | 135 | 63.5 | 17.5 | 2 | 19.05 | 4 | 98.4 |
| 1.1/2″ | 40 | 38 | 190 | 155 | 73 | 19.1 | 2 | 22.2 | 4 | 114.3 |
| 2″ | 50 | 49 | 216 | 165 | 92.1 | 20.7 | 2 | 19.05 | 8 | 127 |
| 2.1/2″ | 65 | 62 | 241 | 190 | 104.8 | 23.9 | 2 | 22.2 | 8 | 149.2 |
| 3″ | 80 | 74 | 282 | 210 | 127 | 27 | 2 | 22.2 | 8 | 168.3 |
| 4″ | 100 | 100 | 305 | 255 | 157.2 | 30.2 | 2 | 22.2 | 8 | 200 |
| 5″ | 125 | 125 | 381 | 280 | 185.7 | 33.4 | 2 | 22.2 | 8 | 235 |
| 6″ | 150 | 150 | 403 | 320 | 215.9 | 35 | 2 | 22.2 | 12 | 269.9 |
| 8″ | 200 | 201 | 419 | 380 | 269.9 | 39.7 | 2 | 25.4 | 12 | 330.2 |
| 10″ | 250 | 252 | 457 | 445 | 323.8 | 46.1 | 2 | 28.6 | 16 | 387.4 |
| 12″ | 300 | 303 | 648 | 520 | 381 | 49.3 | 2 | 31.75 | 16 | 450.8 |
(All Dimensions are in mm)
| As Per ASME B16.5 600# Dimensions Table | ||||||||||
| Valve Size | Port | L1 | ØD | Øg | b | f | ØJ | N | PCD | |
| Inch | MM | |||||||||
| 1/2″ | 15 | 13 | 165 | 95 | 34.9 | 14.3 | 7 | 15.9 | 4 | 66.7 |
| 3/4″ | 20 | 19 | 190 | 115 | 42.9 | 15.9 | 7 | 19.05 | 4 | 82.6 |
| 1″ | 25 | 25 | 216 | 125 | 50.8 | 17.5 | 7 | 19.05 | 4 | 88.9 |
| 1.1/4″ | 32 | 32 | 229 | 135 | 63.5 | 20.7 | 7 | 19.05 | 4 | 98.4 |
| 1.1/2″ | 40 | 38 | 241 | 155 | 73 | 22.3 | 7 | 22.2 | 4 | 114.3 |
| 2″ | 50 | 49 | 292 | 165 | 92.1 | 25.4 | 7 | 19.05 | 8 | 127 |
| 2.1/2″ | 65 | 62 | 330 | 190 | 104.8 | 28.6 | 7 | 22.2 | 8 | 149.2 |
| 3″ | 80 | 74 | 356 | 210 | 127 | 31.8 | 7 | 22.2 | 8 | 168.3 |
| 4″ | 100 | 100 | 432 | 275 | 157.2 | 38.1 | 7 | 25.4 | 8 | 215.9 |
| 5″ | 125 | 125 | 508 | 330 | 185.7 | 44.5 | 7 | 28.6 | 8 | 266.7 |
| 6″ | 150 | 150 | 559 | 355 | 215.9 | 47.7 | 7 | 28.6 | 12 | 292.1 |
| 8″ | 200 | 201 | 660 | 420 | 269.9 | 55.6 | 7 | 31.75 | 12 | 349.2 |
| 10″ | 250 | 252 | 787 | 510 | 323.8 | 63.5 | 7 | 34.9 | 16 | 431.8 |
| 12″ | 300 | 303 | 838 | 560 | 381 | 66.7 | 7 | 34.9 | 20 | 489 |
(All Dimensions are in mm)
Note : 900# / 1500# / 2500# Available On Request.
