4MHBT Series
3Pc. Design High Pressure Floating Ball Valve
Size Range : 1/2″ to 14″ Screwed / Flanged / Socket Weld
Description
“4Matic” Offers Pneumatic Actuator Operated Investment Casting WCB / CF8 / CF8M / CF3M Floating Ball Valve in Three Piece design. Engineered for On / Off operations in the down stream.
Technical Specification
| Standard | |
| Design And Manufacturing | ASME B 16.34 / BS EN ISO 17292 |
| Threader Fitting | ASME B 1.20 |
| Inspection & Testing | API 598 / ISO – 5208 / BS EN 12266 – 1 |
| Leakage Class | Class VI ISO – 5208 |
Accessories:
- On / OFF Indicator
- NAMUR Standard Solenoid Valve in all Standard Coil Voltage (Flame Proof Solenoid Coil – On Request)
- Pneumatic & Electro-Pneumatic valve positioner
- Declutchable Manual Over – Ride
- Limit Switches for On / Off Indication at Panel Board
- Filter + Regulator Combination with Pressure Gauge
- Air Lock Valve
Dimensions :
| Valve Model | Valve Size | L | Port | Weight Approx. | |
| Inch | MM | ||||
| 4M-HBT – 15 | 1/2″ | 15 | 64 | 13 | 3.550 |
| 4M-HBT – 20 | 3/4″ | 20 | 70 | 19 | 3.800 |
| 4M-HBT – 25 | 1″ | 25 | 88 | 25 | 4.150 |
| 4M-HBT – 32 | 1.1/4″ | 32 | 105 | 32 | 6.850 |
| 4M-HBT – 40 | 1.1/2″ | 40 | 114 | 38 | 7.800 |
| 4M-HBT – 50 | 2″ | 50 | 130 | 49 | 11.300 |

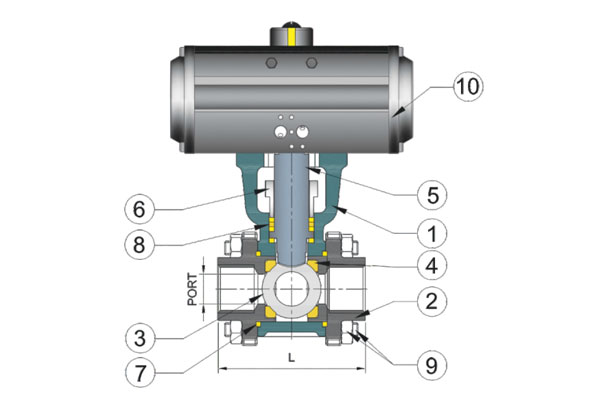

| Sr.No. | Description | Material |
| 1 | Body | WCB / CF8 / CF8M |
| 2 | Connector | WCB / CF8 / CF8M |
| 3 | Ball | CF8 / CF8M |
| 4 | Ball Seat | CFT |
| 5 | Stem Pin | S. S. 304 |
| 6 | Gland with Bush | S. S. 304 |
| 7 | Body Seat | CFT |
| 8 | Stem Seat | CFT |
| 9 | Nut + Stud + Washer | S. S. 304 |
| 10 | Actuator | STD. |
