3pc. Design Triclover End Floating Ball Valve

4MOK Series

3Pc. Design Triclover End Floating Ball Valve

Size Range : 1/2″ to 4″ Triclover Ends

Description

Technical Specification

Description

“4Matic” Offers Pneumatic Actuator Operated Investment Casting WCB / CF8 / CF8M / CF3M Floating Ball Valve in Three Piece design. Engineered for On / Off operation in the down stream.

Technical Specification

Standard
Design And Manufacturing ASME B 16.34 / BS EN ISO 17292
Inspection & Testing API 598 / ISO – 5208 / BS EN 12266 – 1
Leakage Class Class VI ISO – 5208

Accessories:

  • On / OFF Indicator
  • NAMUR Standard Solenoid Valve in all Standard Coil Voltage (Flame Proof Solenoid Coil – On Request)
  • Pneumatic & Electro-Pneumatic valve positioner
  • Declutchable Manual Over – Ride
  • Limit Switches for On / Off Indication at Panel Board
  • Filter + Regulator Combination with Pressure Gauge
  • Air Lock Valve

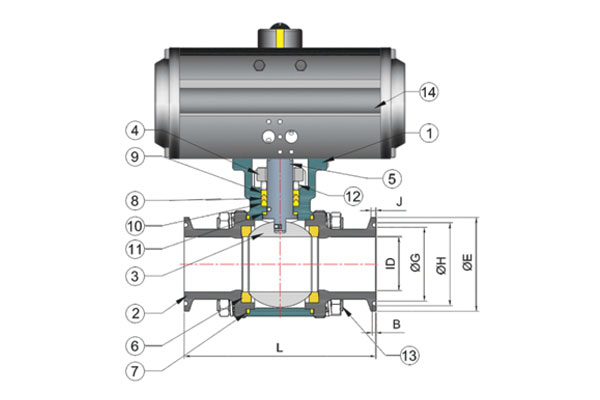

Dimensions :

Valve Model Valve Size L ID ØG ØH ØE J B Weight Approx.
Inch MM
4M-OKP – 15 1/2″ 15 65 13 24.55 30.45 34 2.85 1.6 1.285
4M-OKP – 20 3/4″ 20 70 19 24.55 30.45 34 2.85 1.6 1.880
4M-OKP – 25 1″ 25 88 25 40.55 46.45 50.5 2.85 1.6 2.175
4M-OKP – 32 1.1/4″ 32 105 32 40.55 46.45 50.5 2.85 1.6 2.450
4M-OKP – 40 1.1/2″ 40 114 32 40.55 46.45 50.5 2.85 1.6 3.600
4M-OKP – 50 2″ 50 130 42.5 53.55 59.45 64 2.85 1.6 5.050
4M-OKP – 65 2.1/2″ 65 170 62 80.55 86.45 91 2.85 1.6 12.080
4M-OKP – 80 3″ 80 200 74 94.05 99.95 106 2.85 1.6 13.900
4M-OKP – 100 4″ 100 210 100 107.05 112.95 119 2.85 1.6 21.900
Sr. No.DescriptionMaterial
1BodyWCB / CF8 / CF8M / CF3M
2ConnectorWCB / CF8 / CF8M / CF3M
3BallCF8 / CF8M / CF3M
4GlandCF8 / CF8M / CF3M
5Stem PinS. S. 304 / S. S. 316
6Ball SeatPTFE / GFT / CFT / TFM
7Body SeatPTFE / GFT / CFT / TFM
8U – SeatPTFE / GFT / CFT / TFM
9V – SeatPTFE / GFT / CFT / TFM
10Base SeatPTFE / GFT / CFT / TFM
11Stem SeatPTFE / GFT / CFT / TFM
12Spacer RingS. S. 304
13Body Fitting Stud + Nut + WasherS. S. 304
14ActuatorSTD.
