Ball Check Valve

4MBCV Series

Ball Check Valve

Size Range : 1″ to 14″

Description

Technical Specification

Description

Ball Check Valve (Flanged)

Principle

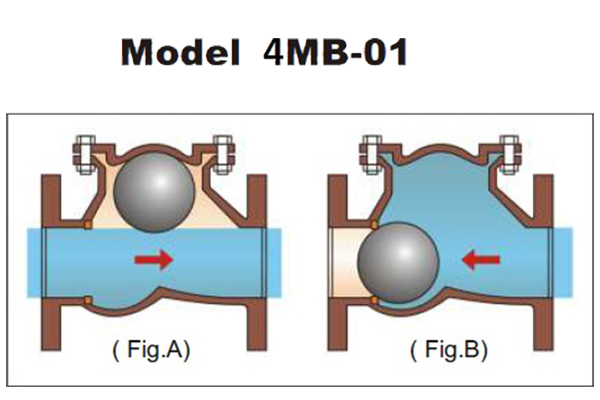

The reinforced rubber ball is the heart of this valve. This ball in the designed path of the valve moves freely and promptly reacts to the ON & OFF of the pump. The ball moves to open position when the pump starts & allows free flow of liquid without any interference. (Fig. A) As the pump stops, the ball seats firmly against the metal seat due to its own weight & back pressure of the liquid (Fig B) This results in DROPLESS sealing.

Features of the Valve

  • New generation valve with unique and non-conventional design.
  • Suitable for a very wide range of applications like slurry, sewage, paper, chemical, water supply, agriculture, muddy water, slurry, paper stock, viscous liquid and dear water.
  • Robust and very simple mechanism.
  • Afloating reinforced rubber coated ball is used instead of hinge-pin-disc.
  • Highly sensible to arrest flow with perfect sealing.
  • Very low head loss
  • Non clogging and self cleaning mechanism
  • Maintenance free
  • Power saving
  • Large solid handling capacity
  • Dimensionally conforming with DIN 3202-F6 / EN558-1-S48 / IS 5312
  • Installation can be vertically or horizontally
  • Operates silently upto 80 °C
  • This valve has a quality for withstanding consistent performance and longer

Ball Check Valve (Threaded)

Principle

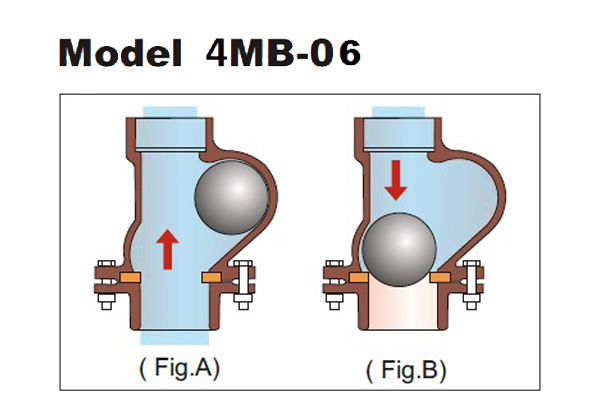

The reinforced rubber ball is the heart of this valve. This ball in the designed path of the valve moves freely and promptly reacts to the ON & OFF of the pump. The ball moves to open position when the pump starts & allows free flow of liquid without any interference. (Fig. A) As the pump stops, the ball seats firmly against the metal seat due to its own weight & back pressure of the liquid (Fig B) This results in DROPLESS sealing.

Features of the Valve

  • New generation valve with unique and non-conventional design.
  • Suitable for a very wide range of applications like slurry, sewage, paper, chemical, water supply, agriculture, muddy water, slurry, paper stock, viscous liquid and dear water.
  • Robust and very simple mechanism.
  • Afloating reinforced rubber coated ball is used instead of hinge-pin-disc.
  • Highly sensible to arrest flow with perfect sealing.
  • Very low head loss
  • Non clogging and self cleaning mechanism
  • Maintenance free
  • Power saving
  • Large solid handling capacity
  • Dimensionally conforming with DIN 3202-F6 / EN558-1-S48 / IS 5312
  • Installation can be vertically or horizontally
  • Operates silently upto 80 °C
  • This valve has a quality for withstanding consistent performance and longer

Technical Specification

Ball Check Valve (Flanged)

Pressure Rating

SizeRating
25 – 125NBPN 1.6
150 – 300NBPN 1.0
350NBPN 0.6
For CI Construction

Part List / Materials of Construction

Part Description Standard Special
Body Cast Iron GG 25 St. Steel, Cast Steel
Cover Cast Iron GG 25 St. Steel, Cast Steel
Ball Nitrile Rubber coated EPDM, Neoprene
Cover Ring Nitrile ASTM D2000 Butyle, Viton
Ball Seat Ring L.T.Bronze LTB2 St. Steel, Hard Rub.
Fasteners Carbon Steel CL4 St. Steel

Dimensions (A = Valve size in mm)

A 25 40 50 65 80 100 125 150 200 250 300 350
D 115 150 165 185 200 220 250 285 340 395 445 527
L 144 174 200 240 260 300 350 400 500 600 700 800
H 125 165 185 210 250 285 340 415 505 600 670 835
T 15 15 16 16 20 22 22 24 23 28 28 32
Width 115 150 166 186 202 221 275 307 375 433 501 535
Wt.(kg) 4.0 6.5 9.5 13.0 19.0 28.0 46.0 60.0 103.0 156.0 209.0 310.0

Ball Check Valve (Threaded)

Pressure Rating

Size Rating
25 – 100NB PN 0.6
For CI Construction

Part List / Materials of Construction

Part Description Material
1. Body Cast Iron – IS210, FG200 (min)
2. Ball Nitrile Rubber Coated
3. Seat Ring Nitrile ASTM D-2000
4. Fastener Carbon Steel CL4
5. Adaptor Cast Iron – IS210, FG200 (min)

Dimensions (A = Valve size in mm)

A 25 40 50 65 80 100
H 121 142 167 208 250 295
W 115 125 136 165 204 250
Wt.(kg) 1.7 2.0 3.2 5.2 8.5 13.5
