Control Ball Valves

4MVKT Series

Size Range : : 1/2″ to 8″ Flanged

Description

V Knotch Floating Ball Valve

Leading Exporter & Supplier of Control Ball Valves, Industrial control ball valves, V Notch Floating Ball Valve, Control Valves manufacturers and suppliers In India

“4Matic” Offers Pneumatic Actuator Operated standard round port ball valves have been used, and continue to be used, for many control applications such as services involving moderate pressure drops. Now, with the development of V balls characterized, a full range of control applications is available with superior flow control. These quarter turn control ball valve are more compact, lighter weight and much less expensive than comparably sized globe valves and segmented control valves offered by other companies. control valves offer fast response times to control signals due to advanced digital control of actuation and the in there strenghts of ball valves. These valves exceed class VI offering bubble tight shut off with zero leakage. Other features include superior quality, high flow capacity, the ability to function with fluids containing solids and fibers and ease of maintenance.

Technical Specification

Standard
Design And Manufacturer	BS EN ISO 17292 / ASME B.34
Valve Face To Face Dimension	ASME B16.10
Flange Standard Conformity	ASME B 16.5 150#
Inspection & Testing	BS EN 12266 – 1 & 2 API – 598
Top Flange Drilling	ASA 150# / DIN 2632 & 2633 / BS EN 10 Table D, E, F (Customer Specified)

Accessories:

On / OFF Indicator
NAMUR Standard Solenoid Valve in all Standard Coil Voltage (Flame Proof Solenoid Coil – On Request)
Pneumatic & Electro-Pneumatic valve positioner
Declutchable Manual Over – Ride
Limit Switches for On / Off Indication at Panel Board
Filter + Regulator Combination with Pressure Gauge
Air Lock Valve

Dimensions :

Valve Model	Valve Size		L1	Weight Approx.
Valve Model	Inch	MM	L1	Weight Approx.
4M-VKT -15	1/2″	15	102	2.400
4M-VKT -20	3/4″	20	102	2.400
4M-VKT -25	1″	25	102	7.000
4M-VKT -32	1.1/4″	32	114	7.000
4M-VKT -40	1.1/2″	40	114	7.750
4M-VKT -50	2″	50	124	15.800
4M-VKT -65	2.1/2″	65	145	16.300
4M-VKT -80	3″	80	165	20.000
4M-VKT -100	4″	100	194	27.000
4M-VKT -125	5″	125	210	42.000
4M-VKT -150	6″	150	229	58.000
4M-VKT -200	8″	200	243	85.000
4M-VKT -250	10″	250	279	160.000
4M-VKT -300	12″	300	340	220.000

(All Dimensions are in mm)

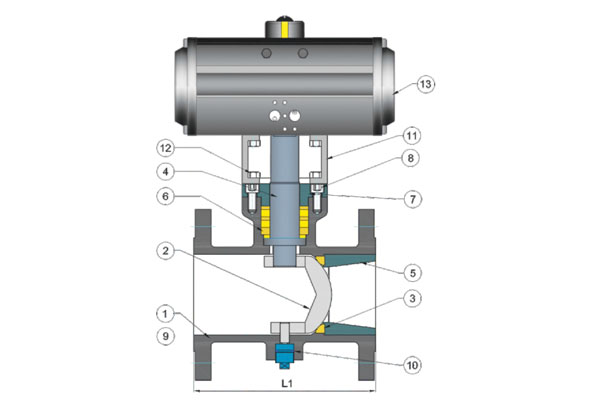

Sr. No.	Description	Material
1	Body	WCB / CF8 / CF8M / CF3M
2	Ball	CF8 / CF8M / CF3M
3	Ball Seat	PTFE / CFT / GFT / TFM
4	Shaft	S. S. 304 / S. S. 316
5	Retainer	S. S. 304 / S. S. 316
6	Packing Set	PTFE / CFT / GFT / TFM
7	Gland Plate	S. S. 304
8	Gland L. N. Bolt	S. S. 304
9	Trunnion Pin	S. S. 304
10	Trunnion Washer	PTFE
11	Bracket	WCB / CF8 / CF8M
12	Bracket Fitting Bolt	S. S. 304
13	Actuator	STD.

(All Dimensions are in mm)

For Ball Valves Flange Standards Dimension Table :

As Per ASME B16.5 150# Dimensions Table
Valve Size		Port	L1	ØD	Øg	b	f	ØJ	N	PCD
Inch	MM	Port	L1	ØD	Øg	b	f	ØJ	N	PCD
1/2″	15	13	108	90	34.9	9.6	2	15.9	4	60.3
3/4″	20	19	117	100	42.9	11.2	2	15.9	4	69.9
1″	25	25	127	110	50.8	12.7	2	15.9	4	79.4
1.1/4″	32	32	140	115	63.5	14.3	2	15.9	4	88.9
1.1/2″	40	38	165	125	73	15.9	2	15.9	4	98.4
2″	50	49	178	150	92.1	17.5	2	19.05	4	120.7
2.1/2″	65	62	190	180	104.8	20.7	2	19.05	4	139.7
3″	80	74	203	190	127	22.3	2	19.05	4	152.4
4″	100	100	229	230	157.2	22.3	2	19.05	8	190.5
5″	125	125	254	255	185.7	22.3	2	22.2	8	215.9
6″	150	150	267	280	215.9	23.9	2	22.2	8	241.3
8″	200	201	292	345	269.9	27	2	22.2	8	298.5
10″	250	252	330	405	323.8	28.6	2	25.4	12	362
12″	300	303	610	485	381	30.2	2	25.4	12	431.8

(All Dimensions are in mm)

As Per ASME B16.5 300# Dimensions Table
Valve Size		Port	L1	ØD	Øg	b	f	ØJ	N	PCD
Inch	MM	Port	L1	ØD	Øg	b	f	ØJ	N	PCD
1/2″	15	13	140	95	34.9	12.7	2	15.9	4	66.7
3/4″	20	19	152	115	42.9	14.3	2	19.05	4	82.6
1″	25	25	165	125	50.8	15.9	2	19.05	4	88.9
1.1/4″	32	32	178	135	63.5	17.5	2	19.05	4	98.4
1.1/2″	40	38	190	155	73	19.1	2	22.2	4	114.3
2″	50	49	216	165	92.1	20.7	2	19.05	8	127
2.1/2″	65	62	241	190	104.8	23.9	2	22.2	8	149.2
3″	80	74	282	210	127	27	2	22.2	8	168.3
4″	100	100	305	255	157.2	30.2	2	22.2	8	200
5″	125	125	381	280	185.7	33.4	2	22.2	8	235
6″	150	150	403	320	215.9	35	2	22.2	12	269.9
8″	200	201	419	380	269.9	39.7	2	25.4	12	330.2
10″	250	252	457	445	323.8	46.1	2	28.6	16	387.4
12″	300	303	648	520	381	49.3	2	31.75	16	450.8

(All Dimensions are in mm)

As Per ASME B16.5 600# Dimensions Table
Valve Size		Port	L1	ØD	Øg	b	f	ØJ	N	PCD
Inch	MM	Port	L1	ØD	Øg	b	f	ØJ	N	PCD
1/2″	15	13	165	95	34.9	14.3	7	15.9	4	66.7
3/4″	20	19	190	115	42.9	15.9	7	19.05	4	82.6
1″	25	25	216	125	50.8	17.5	7	19.05	4	88.9
1.1/4″	32	32	229	135	63.5	20.7	7	19.05	4	98.4
1.1/2″	40	38	241	155	73	22.3	7	22.2	4	114.3
2″	50	49	292	165	92.1	25.4	7	19.05	8	127
2.1/2″	65	62	330	190	104.8	28.6	7	22.2	8	149.2
3″	80	74	356	210	127	31.8	7	22.2	8	168.3
4″	100	100	432	275	157.2	38.1	7	25.4	8	215.9
5″	125	125	508	330	185.7	44.5	7	28.6	8	266.7
6″	150	150	559	355	215.9	47.7	7	28.6	12	292.1
8″	200	201	660	420	269.9	55.6	7	31.75	12	349.2
10″	250	252	787	510	323.8	63.5	7	34.9	16	431.8
12″	300	303	838	560	381	66.7	7	34.9	20	489

(All Dimensions are in mm)

Note : 900# / 1500# / 2500# Available On Request.
