4MWOG Series
High Pressure Ball Valve
Size Range : 1/2″ to 2″ Screwed (BSP / NPT Thread)
Description
“4Matic”Offers Pneumatic Actuator Operated Low Torque High Pressure Floating Ball Valve. This range offers reliable option of high pressure application. These valve are recommended for the use in Oil, Gas, Petrochemicals where the long life is required.
Technical Specification
| Size | Seat | Working Pressure | Hydro Body | Hydro Seat | Pneumatic Pressure |
| 1/2” to 2” | PEEK | 200 Kg/cm² | 300 Kg/cm² | 220 Kg/cm² | 10 Kg/cm² |
| 1/2” to 2” | CFT | 100 Kg/cm² | 300 Kg/cm² | 100 Kg/cm² | 10 Kg/cm² |
Accessories:
- On / OFF Indicator
- NAMUR Standard Solenoid Valve in all Standard Coil Voltage (Flame Proof Solenoid Coil – On Request)
- Pneumatic & Electro-Pneumatic valve positioner
- Declutchable Manual Over – Ride
- Limit Switches for On / Off Indication at Panel Board
- Filter + Regulator Combination with Pressure Gauge
- Air Lock Valve

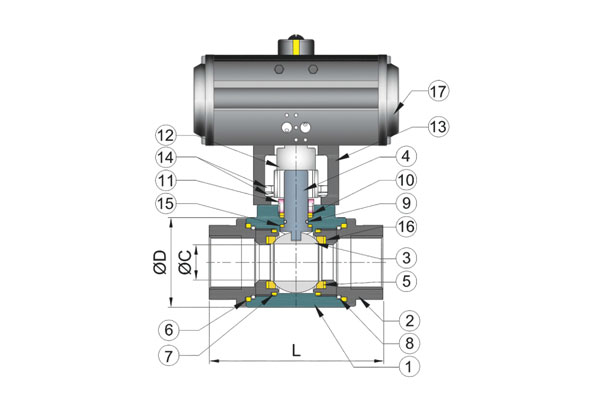

| Sr.No. | Description | Material |
| 1 | Body | WCB / CF8 / CF8M / CF3M |
| 2 | Connector | WCB / CF8 / CF8M / CF3M |
| 3 | Ball | S.S.304 / 316 |
| 4 | Stem Pin | S.S.304 / 316 |
| 5 | Ball Seat | PEEK |
| 6 | Body Seat | CFT |
| 7 | Conn Seat | CFT |
| 8 | Conn ’01- Ring | NBR |
| 9 | Stem ‘0’ – Ring | NBR |
| 10 | Stem Seat | CFT |
| 11 | Lock Bush | S.S.304 / 316 |
| 12 | Adaptor | S.S.304 |
| 13 | Bracket | WCB / CF8 / CF8M |
| 14 | Bracket Fitting Bolt & Washer | S.S.304 |
| 15 | Stem Bottom Seat | CFT |
| 16 | Ball Secondary Seat | CFT |
| 17 | Actuator | STD. |
Dimensions :
| Valve Model | Valve Size | L | ØC Bore |
&ØD |
Weight Approx. |
|
| Inch | MM | |||||
| 4M-WOG – 15 | 1/2″ | 15 | 98 | 12.5 | 39 | 2.530 |
| 4M-WOG – 20 | 3/4″ | 20 | 108 | 18 | 48 | 3.440 |
| 4M-WOG – 25 | 1″ | 25 | 108 | 22 | 55.5 | 4.100 |
| 4M-WOG – 32 | 1.1/4″ | 32 | 133 | 32 | 76.5 | 8.150 |
| 4M-WOG – 40 | 1.1/2″ | 40 | 133 | 32 | 76.5 | 7.580 |
| 4M-WOG – 50 | 50 2″ | 50 | 159 | 38 | 89.5 | 13.790 |
