4MKLG Series
Jacketed Ball Valves
Size Range : 3/4″X1/2″ to 6″X4″ Flanged
Description
Jacketed Floating Ball Valve | Jacketed Ball Valves – Manufacturers & Exporter
“4Matic” Offers Pneumatic Actuator Operated Single Piece design full bore Jacketed Floating Ball Valve, Jacketed Ball Valves are designed. Jacketed construction for standard bore valves. The Jacket comes in single piece construction welded together. The Jackets of the valves can be rated for heat transfer media pressure upto 10 Kg/cm² The valves. The valve can be used sanitary application jacketed ball valves. jacketed ball valve designed for using in the several condition such as applications : Filter dryer, Vacuum dryer, Stirrer Vessel, Rector Other Vessel, Chemical, Pharmaceutical, Food, Cosmetic, Fluids, Emulsion, Syrup, Paints, Chocolate etc.
Technical Specification
| Standard | |
| Design And Manufacturing | ASME B 16.34 |
| Valve Face To Face Dimension | As Per Manufacturer std. |
| Flange Standard Conformity | ASME B 16.5 Class 150/300 |
| Inspection & Testing | ISO – 5208 / S EN 12266-1 |
| Leakage Class | Class VI ISO-5208 |
Accessories:
- On / OFF Indicator
- NAMUR Standard Solenoid Valve in all Standard Coil Voltage (Flame Proof Solenoid Coil – On Request)
- Pneumatic & Electro-Pneumatic valve positioner
- Declutchable Manual Over – Ride
- Limit Switches for On / Off Indication at Panel Board
- Filter + Regulator Combination with Pressure Gauge
- Air Lock Valve
Dimensions :
| Valve Model | Valve Size | L1 | Weight Approx. | |
| Inch | MM | |||
| 4M-KLG – 20 | 3/4″X1/2″ | 20X15 | 117 | 2.660 |
| 4M-KLG – 25 | 1″X3/4″ | 25X20 | 127 | l 3.870 |
| 4M-KLG – 32 | 1.1/4″X1″ | 32X25 | 140 | 4.580 |
| 4M-KLG – 40 | 1.1/2″X1.1/4″ | 40X32 | 165 | 5.500 |
| 4M-KLG -50 | 2″X1.1/2″ | 50X40 | ,178 | ,8.500 |
| 4M-KLG – 65 | 2.1/2″X2″ | 65X50 | 190 | 13.100 |
| 4M-KLG – 80 | 3″X2.1/2″ | 80X65 | 203 | 20.000 |
| 4M-KLG – 100 | 4″X3″ | 100X80 | 229 | 26.000 |
| 4M-KLG – 150 | 6″X4″ | 150X100 | 267 | 45.000 |

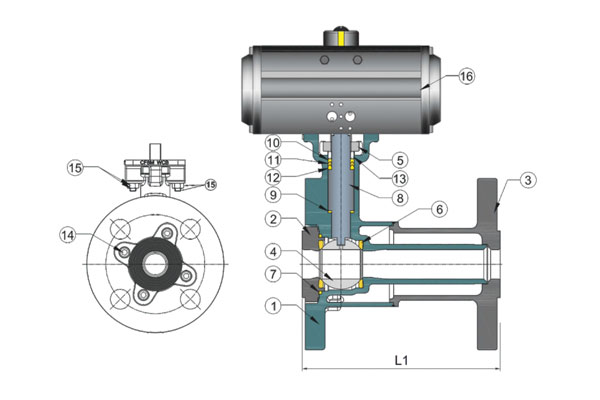

| Sr. No. | Description | Material |
| 1 | Body | WCB / CF8 / CF8M / CF3M |
| 2 | Connector | WCB / CF8 / CF8M / CF3M |
| 3 | Flange | CF8 / CF8M / CF3M |
| 4 | Ball | CF8 / CF8M / CF3M |
| 5 | Gland | CF8 / CF8M / CF3M |
| 6 | Ball Seat | PTFE / CFT / GFT |
| 7 | Body Seat | PTFE / CFT / GFT |
| 8 | Stem pin | S. S. 304 / S. S. 316 |
| 9 | Stem Seat | PTFE / CFT / GFT |
| 10 | V-Seat | PTFE / CFT / GFT |
| 11 | U-Seat | PTFE / CFT / GFT |
| 12 | Base-Seat | PTFE / CFT / GFT |
| 13 | Spacer Ring | S. S. 304 |
| 14 | L.N Bolt | S. S. 304 |
| 15 | Gland Fitting Bolt + Nut | S. S. 304 |
| 16 | Actuator | STD |
For Ball Valves Flange Standards Dimension Table :
| As Per ASME B16.5 150# Dimensions Table | ||||||||||
| Valve Size | Port | L1 | ØD | Øg | b | f | ØJ | N | PCD | |
| Inch | MM | |||||||||
| 1/2″ | 15 | 13 | 108 | 90 | 34.9 | 9.6 | 2 | 15.9 | 4 | 60.3 |
| 3/4″ | 20 | 19 | 117 | 100 | 42.9 | 11.2 | 2 | 15.9 | 4 | 69.9 |
| 1″ | 25 | 25 | 127 | 110 | 50.8 | 12.7 | 2 | 15.9 | 4 | 79.4 |
| 1.1/4″ | 32 | 32 | 140 | 115 | 63.5 | 14.3 | 2 | 15.9 | 4 | 88.9 |
| 1.1/2″ | 40 | 38 | 165 | 125 | 73 | 15.9 | 2 | 15.9 | 4 | 98.4 |
| 2″ | 50 | 49 | 178 | 150 | 92.1 | 17.5 | 2 | 19.05 | 4 | 120.7 |
| 2.1/2″ | 65 | 62 | 190 | 180 | 104.8 | 20.7 | 2 | 19.05 | 4 | 139.7 |
| 3″ | 80 | 74 | 203 | 190 | 127 | 22.3 | 2 | 19.05 | 4 | 152.4 |
| 4″ | 100 | 100 | 229 | 230 | 157.2 | 22.3 | 2 | 19.05 | 8 | 190.5 |
| 5″ | 125 | 125 | 254 | 255 | 185.7 | 22.3 | 2 | 22.2 | 8 | 215.9 |
| 6″ | 150 | 150 | 267 | 280 | 215.9 | 23.9 | 2 | 22.2 | 8 | 241.3 |
| 8″ | 200 | 201 | 292 | 345 | 269.9 | 27 | 2 | 22.2 | 8 | 298.5 |
| 10″ | 250 | 252 | 330 | 405 | 323.8 | 28.6 | 2 | 25.4 | 12 | 362 |
| 12″ | 300 | 303 | 610 | 485 | 381 | 30.2 | 2 | 25.4 | 12 | 431.8 |
| As Per ASME B16.5 300# Dimensions Table | ||||||||||
| Valve Size | Port | L1 | ØD | Øg | b | f | ØJ | N | PCD | |
| Inch | MM | |||||||||
| 1/2″ | 15 | 13 | 140 | 95 | 34.9 | 12.7 | 2 | 15.9 | 4 | 66.7 |
| 3/4″ | 20 | 19 | 152 | 115 | 42.9 | 14.3 | 2 | 19.05 | 4 | 82.6 |
| 1″ | 25 | 25 | 165 | 125 | 50.8 | 15.9 | 2 | 19.05 | 4 | 88.9 |
| 1.1/4″ | 32 | 32 | 178 | 135 | 63.5 | 17.5 | 2 | 19.05 | 4 | 98.4 |
| 1.1/2″ | 40 | 38 | 190 | 155 | 73 | 19.1 | 2 | 22.2 | 4 | 114.3 |
| 2″ | 50 | 49 | 216 | 165 | 92.1 | 20.7 | 2 | 19.05 | 8 | 127 |
| 2.1/2″ | 65 | 62 | 241 | 190 | 104.8 | 23.9 | 2 | 22.2 | 8 | 149.2 |
| 3″ | 80 | 74 | 282 | 210 | 127 | 27 | 2 | 22.2 | 8 | 168.3 |
| 4″ | 100 | 100 | 305 | 255 | 157.2 | 30.2 | 2 | 22.2 | 8 | 200 |
| 5″ | 125 | 125 | 381 | 280 | 185.7 | 33.4 | 2 | 22.2 | 8 | 235 |
| 6″ | 150 | 150 | 403 | 320 | 215.9 | 35 | 2 | 22.2 | 12 | 269.9 |
| 8″ | 200 | 201 | 419 | 380 | 269.9 | 39.7 | 2 | 25.4 | 12 | 330.2 |
| 10″ | 250 | 252 | 457 | 445 | 323.8 | 46.1 | 2 | 28.6 | 16 | 387.4 |
| 12″ | 300 | 303 | 648 | 520 | 381 | 49.3 | 2 | 31.75 | 16 | 450.8 |
(All Dimensions are in mm)
| As Per ASME B16.5 600# Dimensions Table | ||||||||||
| Valve Size | Port | L1 | ØD | Øg | b | f | ØJ | N | PCD | |
| Inch | MM | |||||||||
| 1/2″ | 15 | 13 | 165 | 95 | 34.9 | 14.3 | 7 | 15.9 | 4 | 66.7 |
| 3/4″ | 20 | 19 | 190 | 115 | 42.9 | 15.9 | 7 | 19.05 | 4 | 82.6 |
| 1″ | 25 | 25 | 216 | 125 | 50.8 | 17.5 | 7 | 19.05 | 4 | 88.9 |
| 1.1/4″ | 32 | 32 | 229 | 135 | 63.5 | 20.7 | 7 | 19.05 | 4 | 98.4 |
| 1.1/2″ | 40 | 38 | 241 | 155 | 73 | 22.3 | 7 | 22.2 | 4 | 114.3 |
| 2″ | 50 | 49 | 292 | 165 | 92.1 | 25.4 | 7 | 19.05 | 8 | 127 |
| 2.1/2″ | 65 | 62 | 330 | 190 | 104.8 | 28.6 | 7 | 22.2 | 8 | 149.2 |
| 3″ | 80 | 74 | 356 | 210 | 127 | 31.8 | 7 | 22.2 | 8 | 168.3 |
| 4″ | 100 | 100 | 432 | 275 | 157.2 | 38.1 | 7 | 25.4 | 8 | 215.9 |
| 5″ | 125 | 125 | 508 | 330 | 185.7 | 44.5 | 7 | 28.6 | 8 | 266.7 |
| 6″ | 150 | 150 | 559 | 355 | 215.9 | 47.7 | 7 | 28.6 | 12 | 292.1 |
| 8″ | 200 | 201 | 660 | 420 | 269.9 | 55.6 | 7 | 31.75 | 12 | 349.2 |
| 10″ | 250 | 252 | 787 | 510 | 323.8 | 63.5 | 7 | 34.9 | 16 | 431.8 |
| 12″ | 300 | 303 | 838 | 560 | 381 | 66.7 | 7 | 34.9 | 20 | 489 |
(All Dimensions are in mm)
Note : 900# / 1500# / 2500# Available On Request.
