PTFE Lined Butterfly Valves

4MTIG Series

PTFE Lined Butterfly Valves

Size Range : 2″ to 12″

Description

Technical Specification

Description

4Matic PTFE lined valves are well suited for consistent performance requirements in highly corrosive applications involving chlorine, benzene, sulphuric acid, nitric acid, phosphoric acid, hydrochloric acid and sea water. Virgin grade resins and thick fluoropolymer linings provide for superior resistance to corrosive chemical effects, absorption and swelling.

Design and Manufacturing : API 609 Category A / BS 5155 / MSS SP-67 / AWWA C504

Valve Face to Face Dimensions : Short Wafer as per ISO 5752 Tab 5 / API 609 Category A

Top Flange Drilling : ISO 5211 Part II

Inspection and Testing : API 598 / BS 6755 / FCI-70-2

Flanged Standard Conformity : ANSI 150, DIN PN 10 / 16

Advantages :

  • Precision Spherically Molded & Machined One Piece Disc/Stem.
  • Minimum 3mm Thick FEP/PFA Liner.
  • Integral Actuator Mounting Flange.
  • ISO 5211 Mounting Flange.
  • Dynamically Loaded Mechanical Shaft Seal.
  • Radially Loaded Atmospheric Seal.
  • Enhanced Resilient 360 degrees Elastomeric Energizer.
  • High Strength Fasteners.
  • Blowout Proof Stem.
  • Chambered PFA Raised Face Flange Sealing.
  • Epoxy Coated Body.

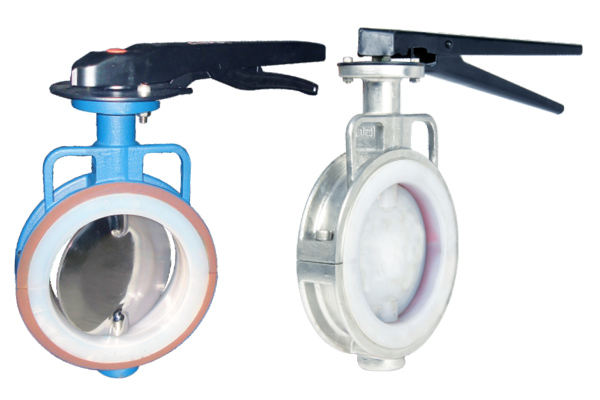

FEP / PFA Lined & Muffler Butterfly Valve

“4Matic” Offers FEP / PFA Lined Butterfly Valve for Corrosive Application. The FEP / PFA Seat Lined Covers the entire Wetted Surface of the body and Extends on to the Flanged Contact face – thus eliminating possibility of any media contact with the body.

Size Range : 2″ to 12″

Technical Specification

PTFE (FEP – PFA) Lined Butterfly Valve with Pneumatic Actuator

  • Size : 2″ to 20″
  • MOC : WCB / CF8 / CF8M / CF3M
  • Seals: FEP / PFA
  • Pressure : 10 Kg/cm2
  • Temperature : FEP 180°c / PFA 230°c
  • Ends : Wafer Type

FEP / PFA Lined & Muffler Butterfly Valve

Standard
Design And Manufacturing API 609 category A/BS 5155 / MSS SP-67 / C-504
Valve Face To Face Dimension Short wafer as per ISO 5752 Tab 5 / API 609 Category A
Flange Standard Conformity ISO 5211 Part II
Inspection & Testing API 598 / BS 6755 / FCI-702
Top Flange Driling ANSI 150, DIN PN 10 / 16

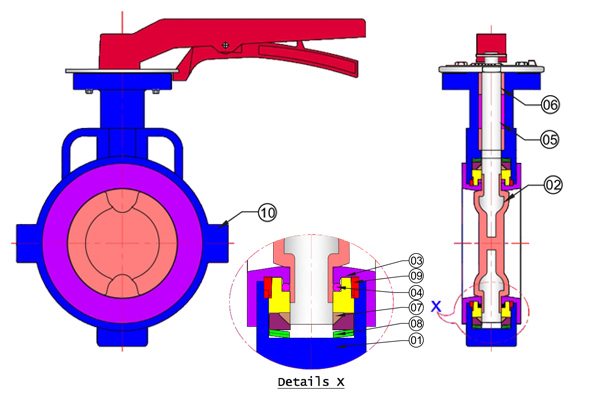

No. Description Material Qty.
1 Body C.I. / C.S. / CF8 / CF8M 01
2 Disc C.I. / C.S. / CF8 / CF8M 01
3 Sleeve FEP / PFA 01
4 ‘O’ Ring Viton 02
5 Bush PTFE 02
6 Bush Metal Bush S.S. 304 02
7 Truth Bush S.S. 304 02
8 Washer Spring Steel 04
9 Gasket Silicon Big 02
10 L. N. Bolt S.S. 304 02

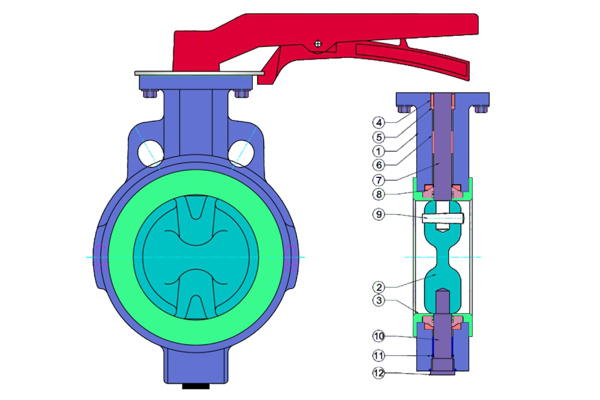

No. Description Material
1 Body C.I. / D.I. / CF8 / CF8M
2 Disc C.I. / I.I. / CF8 / CF8M
3 Seat PTFE
4 Collar PTFE
5 “O” Ring Viton
6 Metal Bush PTFE Coated
7 Top Shaft AISI 410
8 Pad Silicon
9 Disc Pin S. S. 304
10 Bottom Shaft AISI 410
11 “O” Ring Viton
12 Plug M. S.

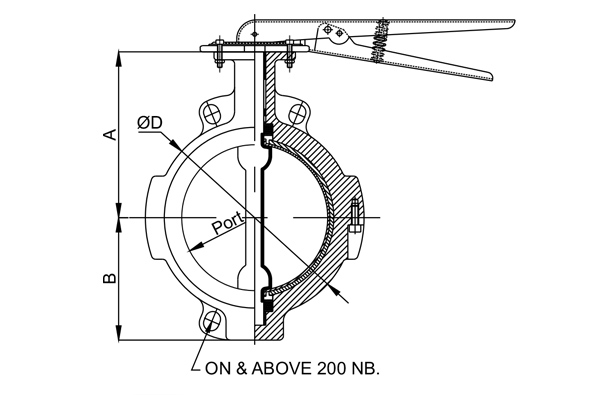

Dimensions : (All Dimensions are in mm)
Valve ModelValve SizePortABF to FØD
MMInch
4M-TIG-50502″481076544101
4M-TIG-65652.1/2″621186546112
4M-TIG-80803″781228346130
4M-TIG-1001004″981539852163
4M-TIG-1251255″—-—-—-—-—
4M-TIG-1501506″14819312257218
4M-TIG-2002008″19622316763273
4M-TIG-25025010″—-—-——-—-
4M-TIG-30030012″291271.5244.578380

High Performance Butterfly Valve

High performance butterfly valves are a type of rotary valve that uses a rotating disk to control flow through a pipe. The disk is generally operable through 90 degrees and provides a linear flow characteristic. For throttling control applications, one type of butterfly valve is now the industry standard: high-performance butterfly valves or double offset valves. Their advantages include a straight-through flow path, very high capacity, and the ability to pass solids and viscous media. High performance butterfly valve (also known as a double offset butterfly valve) features an innovative design that offers rugged reliability and extremely easy maintenance in the field. Independent and internal tests prove the valve’s superior service life capability with zero leakage shutoff.
