4MN Series
PVC Single Piece Wafer Check Valve
Description
“4Matic” Make PVC single piece Wafer Check Valve is common type PVC Check Valve, it is simple structure, small weight, easy to installation, and convenient to maintenance, this plastic wafer Check Valve is widely used in water system, especially in swimming pool, water treatment, irrigation, finish farm, etc.
4Matic offer PVC Wafer Check Valve with the specifications as follows :
Feature Of Valve :
- All the parts that will touch medium is made from thermoplastic and rubber
- Suitable for horizontal installation
- Simple structure is easy for installation and replace.
- Flange assembled type by socket connection is optional
Product Description :
- Size: DN80~DN300 (3 inch ~ 12 inch)
- Connection as per: DIN PN10; ANSI CL150; JIS 10K
- Body Material: PVC-U
- Seal material: EPDM
- Design pressure: 1.0 Mpa (PN10 bar)
Technical Specification
| Basic Info | |
| Pressure | Low Pressure |
| Function | Nrvg Silence |
| Flow Direction | Uni-direction |
| Standard | DIN, DIN , ANSI, JIS, CNS |
| Application | Industrial Usage |
| Material | PVC, UPVC |
| Sealing Form | O Ring |
| Size | DN15~DN300 |
| Connection | Wafer |
| Structure | Swing |

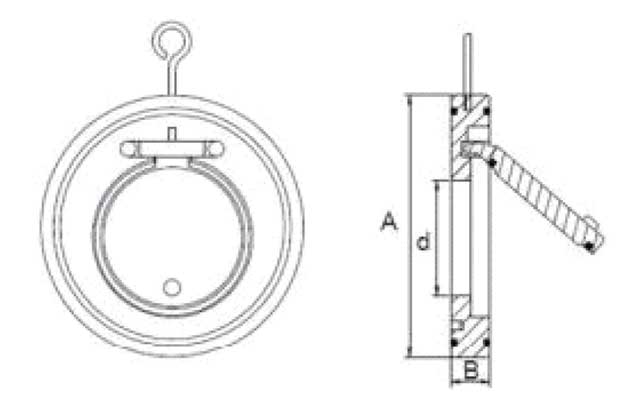

Dimensions :
| Valve Size | A | B | D |
| 3″ (80 mm) | 140 | 23 | 27 |
| 4″ (100 mm) | 160 | 23 | 62 |
| 5″ (125 mm) | 192 | 24 | 83 |
| 6″ (150 mm) | 218 | 26 | 105 |
| 8″ (200 mm) | 273 | 34 | 140 |
| 10″ (250 mm) | 328 | 40 | 170 |
| 12″ (300 mm) | 380 | 45 | 220 |
| SR. NO. | PART | MATERIAL |
| 1 | Body | UPVC |
| 2 | Seal | EPDM |
| 3 | Cover | ABS |
