4MTC Series
UPVC/ CPVC 2 True Union Ball Valve Socket / Flanged
Description
“4Matic” Make PVC true-union ball valves are constructed of ASTM D1784 virgin UPVC resin. The unique double union, Available in Socket, threaded & flanged end connection single bayonet-style lock facilitates ease of repair and/or maintenance by allowing removal of the valve body from the pipeline. Full ports allow maximum flow and minimum pressure drop or turbulence. Recommended for commercial and industrial applications such as sewage and water treatment, chemicals, food processing, swimming pools, etc.
Advantages :
- Smooth opening & closing thanks to a lower torque
- 100% pure virgin material, CaCO3 free (Chalk)
- UV resistant powder added
- 100% pressure testing before leaving the factory
- Can be assembled with Pneumatic/Electric Actuators
Technical Specification
| Pressure / Temperature | |
| PRESSURE RATING | 150 W.O.G. AT 73° F |
| MAXIMUM SERVICE TEMPERATURE | 140° C |
| Specification | |
| Size | 1/2″ – 2″ |
| Material | UPVC, CPVC, PP |
| Joint End | Socket: ( ANSI, JIS, CNS, DIN) / Threaded: (NPT, BSPT, BSPF) / Flanged: ( 10K, 150LB) |
| Working Pressure | 150PSI |
| Operation Temputure | PVC(0~55? ) ,CPVC (0~95? ) , PP(-20? ~120? ) |
| Color | UPVC(Dark Grey), CPVC(Grey), PVC(Ivory) |
| Material Specification | |
| PART | MATERIAL |
| HANDLE | ABS |
| STEM PACKING | EPDM/VITON** |
| STEM | UPVC |
| BALL | UPVC / CPVC |
| BODY | UPVC / CPVC |
| UNION NUTS | UPVC / CPVC |
| END ADAPTER | UPVC / CPVC |
| O-RINGS | EPDM/VITON** |
Dimensions :
| Valve Size | L ±3 mm |
ID ±2 mm |
Port ±1 mm |
| 1/2″ (15 mm) | 112 | 22 | 14 |
| 3/4″ (20 mm) | 115.5 | 27 | 19.2 |
| 1″ (25 mm) | 130 | 33.8 | 24 |
| 1.1/4″ (32 mm) | 146 | 42.4 | 31 |
| 1.1/2″ (40 mm) | 161.5 | 48.4 | 38.3 |
| 2″ (50 mm) | 177.5 | 60.5 | 48 |
| 2.1/2″ (65 mm) | 242 | 73.5 | 61.6 |
| 3″ (80 mm) | 293 | 89 | 74 |
| 4″ (100 mm) | 328 | 115 | 89.5 |

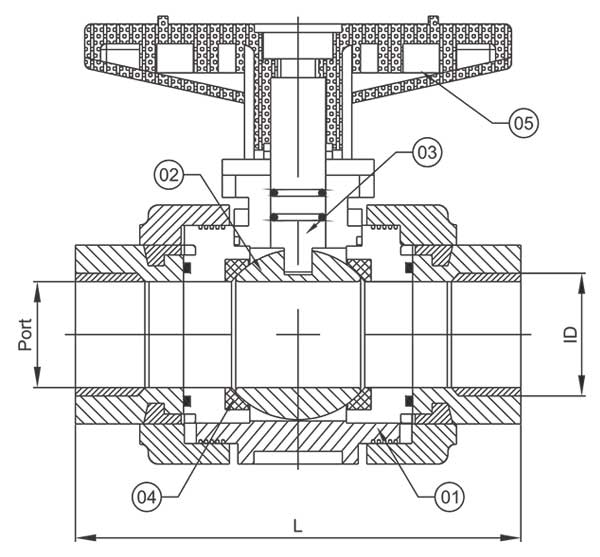

| Sr. No. | PART | MATERIAL |
| 1 | Body | UPVC |
| 2 | Ball | UPVC |
| 3 | Stem | UPVC |
| 4 | Seat | PTFE |
| 5 | Lever | ABS |
