Upvc/Cpvc Gate Valve

4MGA Series

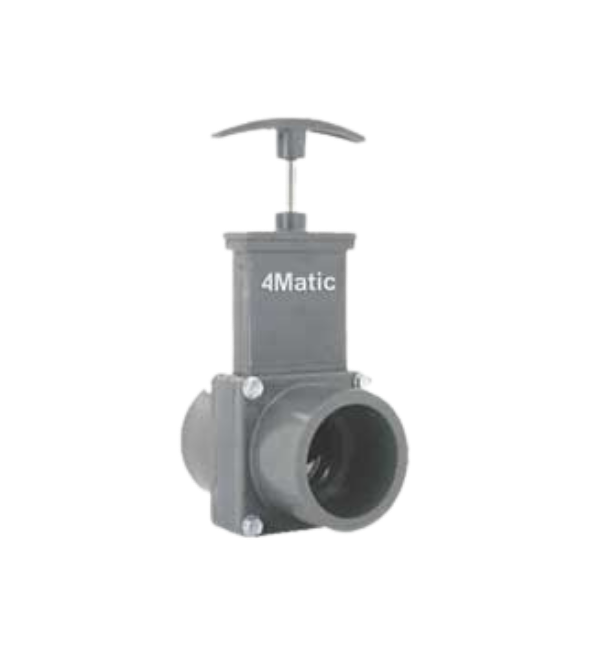

UPVC/ CPVC Gate Valve

Description

“4Matic” Make High quality ABS knife gate valve, Inexpensive valves for Industrial, Agricultural and Commercial markets. Ideal for quic shut- off in low pressure or vacuum lines. We specialize in economical knife gate valves which are ideal for drain applications that require quick shut-off in low pressure or vacuum systems. Applications include waste water control, septic systems, irrigation, aquaculture, pools, spas, IBC, tank drains, and carpet/extraction equipment. Ball valves, swing check valves and swing/spring combo check.

This valve is used for draining the stagnant water inside of the rainwater wet system. It is a valuable purchase allowing the user to quickly and easily drain the wet system without getting wet! Simply raise the plunger upwards handle with ease and the water drains from the system quickly. The valve is 90mm diameter internally allowing the water to drain at high speed. This helps to flush out the leaves and sludge which has accumulated in the bottom of the pipes. Simply install a T-junction into the wet system pipe work at the lowest point possible. The Gate Valve can then be glued into the junction. For best results, fill the wet system from the gutter outlet and drain the gate valve several times until the water runs out clean and clear.

Technical Specification

Pressure / Temperature
MAXIMUM PRESSURE OPEN 140 kPa
MAXIMUM PRESSURE CLOSE 275 kPa
WEIGHT 2.1 Kg
Material & General Specifications
Size1.1/2″ (50mm)2″ (63mm or 75/90mm)3″ (90mm)4″ (110mm)6″/8″ (160/200mm)10″ / 12″
ColorWhite or Black (Gray)White or Black (Gray)White or Black (Gray)White (Gray)White (Gray)White
HubsPVC or ABS (PVC)PVC or ABS (PVC)PVC or ABS (PVC)PVC (PVC)PVCPVC
BodyPVC or ABS (PVC)PVC or ABS (PVC)PVC or ABS (PVC)PVC (PVC)ABSABS
Shaft304SS304SS304SS304SS304SS304SS
PaddlePolyproPolypro or 304SSPolypro or 304SS304SS304SS304SS
HandlePlastic or Die Cast AlPlastic or Die Cast AlPlastic or Die Cast AlDie Cast Al304SS304SS
SealsSarlinkSarlinkSarlinkSarlinkSarlinkSarlink
Max PSI Open/Closed45/10040/8030/3020/4010/2010/15
Mid-Flow Max Closing Pressure6 psi1 psi (PP) 15 psi (SS).5 psi (PP) 9 psi (SS)8 psi2.5 psi2.5 psi
Air CylinderReinforced NylonMetal or Reinforced NylonMetal or Reinforced NylonMetalMetalMetal

Notes : Vacuum Applications: 1.1/2″ to 4″ tested to 26 Hq in. when requested by customer Metric Valves are Gray PVC

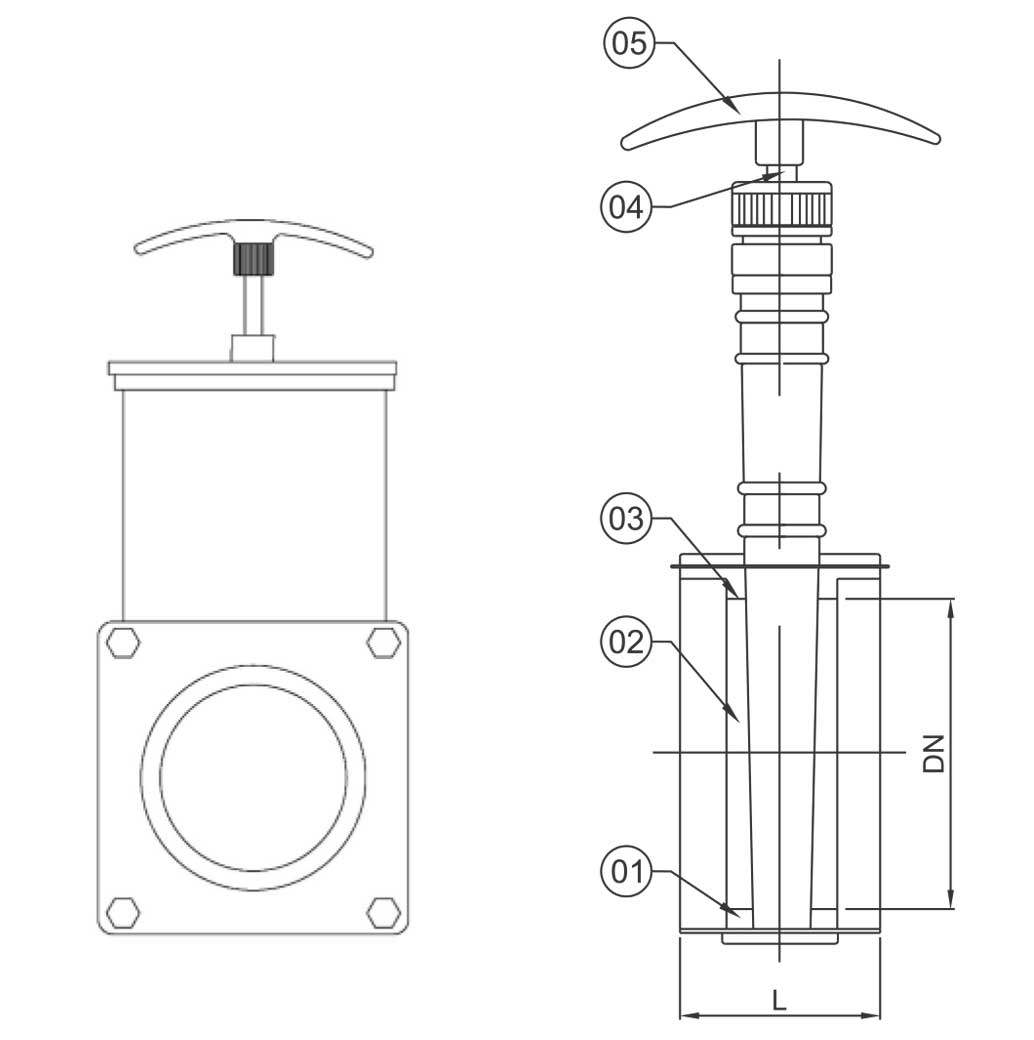

Dimensions :

Valve Size DN

±2 mm

L

±3 mm

1.1/4″ (32 mm) 32 68
1.1/2″ (40 mm) 40 98
2″ (50 mm) 50 108
2.1/2″ (65 mm) 65 124
3″ (80 mm) 80 128
4″ (100 mm) 100 132
Sr. No. PART MATERIAL
1 Body UPVC
2 Wedge UPVC
3 Seat EPDM / Viton
4 Stem Cr13
5 Handle ABS
