4MBWT Series
Wafer Ball Valve
Size Range : 1/2″ to 4″ Wafer Type
Description
Wafer Type Floating Ball Valve
“4Matic” Offers Pneumatic Actuator Operated Investment Casting WCB / CF8 / CF8M / CF3M Wafer Type Floating Ball Valve. Wafer type ball valve application Chemical Product, Food Plants, Distribution line for Gas, Air, Water.
Technical Specification
| Standard | |
| Design And Manufacturer | ASME B 16.34 / BS EN ISO 17292 |
| Valve Face To Face Dimension | As Per Manufacturer Std. |
| Flange Standard Conformity | ASME B 16.5 Class 150/300 |
| Inspection & Testing | ISO-5208 / BS EN 12266-1 |
| Leakage Class | VI Class ISO-5208 |
Accessories:
- On / OFF Indicator
- NAMUR Standard Solenoid Valve in all Standard Coil Voltage (Flame Proof Solenoid Coil – On Request)
- Pneumatic & Electro-Pneumatic valve positioner
- Declutchable Manual Over – Ride
- Limit Switches for On / Off Indication at Panel Board
- Filter + Regulator Combination with Pressure Gauge
- Air Lock Valve

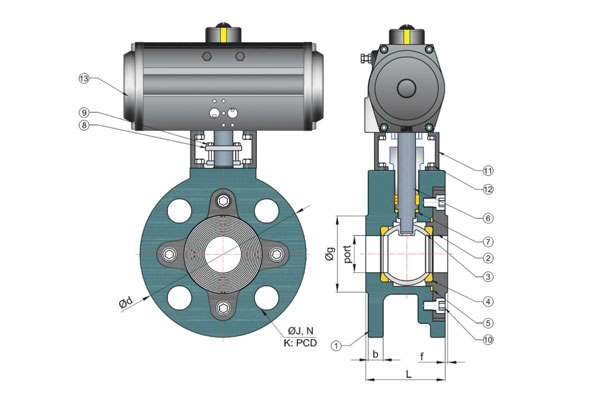

Dimensions :
| Valve Model | Valve Size | L | b | f | Port | g | D | j | N | PCD | Weight Approx. | |
| Inch | MM | |||||||||||
| 4M-BWT-25 | 1″ | 25 | 54 | 9.6 | 2 | 25 | 50.8 | 110 | 15.88 | 4 | 79.4 | 3.300 |
| 4M-BWT-32 | 1.1/4″ | 32 | 58.5 | 11.2 | 2 | 32 | 63.5 | 115 | 15.88 | 4 | 88.9 | 4.380 |
| 4M-BWT-40 | 1.1/2″ | 40 | 63 | 12.7 | 2 | 38 | 73 | 127 | 15.88 | 4 | 98.4 | 4.700 |
| 4M-BWT-50 | 2″ | 50 | 73 | 14.3 | 2 | 49 | 92.1 | 152 | 19.05 | 4 | 120.7 | 7.050 |
| 4M-BWT-65 | 2.1/2″ | 65 | 96 | 15.9 | 2 | 62 | 104.65 | 177.8 | 19.05 | 4 | 139.7 | 14.050 |
| 4M-BWT-80 | 3″ | 80 | 118 | 17.5 | 2 | 74 | 127 | 190 | 19.05 | 4 | 152.4 | 16.550 |
| 4M-BWT-100 | 4″ | 100 | 140 | 22.3 | 2 | 100 | 157.2 | 230 | 19.05 | 8 | 190.5 | 26.000 |
(All Dimensions are in mm)
| Sr. No. | Description | Material |
| 1 | Body | WCB / CF8 / CF8M / CF3M |
| 2 | Connector | WCB / CF8 / CF8M / CF3M |
| 3 | Ball | CF8 / CF8M / CF3M |
| 4 | Ball Seat | PTFE / GFT / CFT / TFM |
| 5 | Body Seat | PTFE / GFT / CFT / TFM |
| 6 | Stem Pin | S.S.304 \S.S. 316 |
| 7 | Stem Seat | PTFE / GFT / CFT / TFM |
| 8 | Gland With Bush | CF8M / CF3M |
| 9 | Gland Fitting Bolt | S.S.304 |
| 10 | Allen Bolt | S.S.304 |
| 11 | Bracket | WCB / CF8M / CF3M |
| 12 | Bracket Fitting Bolt & Nut | S.S.304 |
| 13 | Actuator | STD. |
For Ball Valves Flange Standards Dimension Table :
| As Per ASME B16.5 150# Dimensions Table | ||||||||||
| Valve Size | Port | L1 | ØD | Øg | b | f | ØJ | N | PCD | |
| Inch | MM | |||||||||
| 1/2″ | 15 | 13 | 108 | 90 | 34.9 | 9.6 | 2 | 15.9 | 4 | 60.3 |
| 3/4″ | 20 | 19 | 117 | 100 | 42.9 | 11.2 | 2 | 15.9 | 4 | 69.9 |
| 1″ | 25 | 25 | 127 | 110 | 50.8 | 12.7 | 2 | 15.9 | 4 | 79.4 |
| 1.1/4″ | 32 | 32 | 140 | 115 | 63.5 | 14.3 | 2 | 15.9 | 4 | 88.9 |
| 1.1/2″ | 40 | 38 | 165 | 125 | 73 | 15.9 | 2 | 15.9 | 4 | 98.4 |
| 2″ | 50 | 49 | 178 | 150 | 92.1 | 17.5 | 2 | 19.05 | 4 | 120.7 |
| 2.1/2″ | 65 | 62 | 190 | 180 | 104.8 | 20.7 | 2 | 19.05 | 4 | 139.7 |
| 3″ | 80 | 74 | 203 | 190 | 127 | 22.3 | 2 | 19.05 | 4 | 152.4 |
| 4″ | 100 | 100 | 229 | 230 | 157.2 | 22.3 | 2 | 19.05 | 8 | 190.5 |
| 5″ | 125 | 125 | 254 | 255 | 185.7 | 22.3 | 2 | 22.2 | 8 | 215.9 |
| 6″ | 150 | 150 | 267 | 280 | 215.9 | 23.9 | 2 | 22.2 | 8 | 241.3 |
| 8″ | 200 | 201 | 292 | 345 | 269.9 | 27 | 2 | 22.2 | 8 | 298.5 |
| 10″ | 250 | 252 | 330 | 405 | 323.8 | 28.6 | 2 | 25.4 | 12 | 362 |
| 12″ | 300 | 303 | 610 | 485 | 381 | 30.2 | 2 | 25.4 | 12 | 431.8 |
| As Per ASME B16.5 300# Dimensions Table | ||||||||||
| Valve Size | Port | L1 | ØD | Øg | b | f | ØJ | N | PCD | |
| Inch | MM | |||||||||
| 1/2″ | 15 | 13 | 140 | 95 | 34.9 | 12.7 | 2 | 15.9 | 4 | 66.7 |
| 3/4″ | 20 | 19 | 152 | 115 | 42.9 | 14.3 | 2 | 19.05 | 4 | 82.6 |
| 1″ | 25 | 25 | 165 | 125 | 50.8 | 15.9 | 2 | 19.05 | 4 | 88.9 |
| 1.1/4″ | 32 | 32 | 178 | 135 | 63.5 | 17.5 | 2 | 19.05 | 4 | 98.4 |
| 1.1/2″ | 40 | 38 | 190 | 155 | 73 | 19.1 | 2 | 22.2 | 4 | 114.3 |
| 2″ | 50 | 49 | 216 | 165 | 92.1 | 20.7 | 2 | 19.05 | 8 | 127 |
| 2.1/2″ | 65 | 62 | 241 | 190 | 104.8 | 23.9 | 2 | 22.2 | 8 | 149.2 |
| 3″ | 80 | 74 | 282 | 210 | 127 | 27 | 2 | 22.2 | 8 | 168.3 |
| 4″ | 100 | 100 | 305 | 255 | 157.2 | 30.2 | 2 | 22.2 | 8 | 200 |
| 5″ | 125 | 125 | 381 | 280 | 185.7 | 33.4 | 2 | 22.2 | 8 | 235 |
| 6″ | 150 | 150 | 403 | 320 | 215.9 | 35 | 2 | 22.2 | 12 | 269.9 |
| 8″ | 200 | 201 | 419 | 380 | 269.9 | 39.7 | 2 | 25.4 | 12 | 330.2 |
| 10″ | 250 | 252 | 457 | 445 | 323.8 | 46.1 | 2 | 28.6 | 16 | 387.4 |
| 12″ | 300 | 303 | 648 | 520 | 381 | 49.3 | 2 | 31.75 | 16 | 450.8 |
(All Dimensions are in mm)
| As Per ASME B16.5 600# Dimensions Table | ||||||||||
| Valve Size | Port | L1 | ØD | Øg | b | f | ØJ | N | PCD | |
| Inch | MM | |||||||||
| 1/2″ | 15 | 13 | 165 | 95 | 34.9 | 14.3 | 7 | 15.9 | 4 | 66.7 |
| 3/4″ | 20 | 19 | 190 | 115 | 42.9 | 15.9 | 7 | 19.05 | 4 | 82.6 |
| 1″ | 25 | 25 | 216 | 125 | 50.8 | 17.5 | 7 | 19.05 | 4 | 88.9 |
| 1.1/4″ | 32 | 32 | 229 | 135 | 63.5 | 20.7 | 7 | 19.05 | 4 | 98.4 |
| 1.1/2″ | 40 | 38 | 241 | 155 | 73 | 22.3 | 7 | 22.2 | 4 | 114.3 |
| 2″ | 50 | 49 | 292 | 165 | 92.1 | 25.4 | 7 | 19.05 | 8 | 127 |
| 2.1/2″ | 65 | 62 | 330 | 190 | 104.8 | 28.6 | 7 | 22.2 | 8 | 149.2 |
| 3″ | 80 | 74 | 356 | 210 | 127 | 31.8 | 7 | 22.2 | 8 | 168.3 |
| 4″ | 100 | 100 | 432 | 275 | 157.2 | 38.1 | 7 | 25.4 | 8 | 215.9 |
| 5″ | 125 | 125 | 508 | 330 | 185.7 | 44.5 | 7 | 28.6 | 8 | 266.7 |
| 6″ | 150 | 150 | 559 | 355 | 215.9 | 47.7 | 7 | 28.6 | 12 | 292.1 |
| 8″ | 200 | 201 | 660 | 420 | 269.9 | 55.6 | 7 | 31.75 | 12 | 349.2 |
| 10″ | 250 | 252 | 787 | 510 | 323.8 | 63.5 | 7 | 34.9 | 16 | 431.8 |
| 12″ | 300 | 303 | 838 | 560 | 381 | 66.7 | 7 | 34.9 | 20 | 489 |
(All Dimensions are in mm)
Note : 900# / 1500# / 2500# Available On Request.
